5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S SeriesAccording to the market need of national building's fire pump and using features, XBC Diesel Engine Fire Pump is a new product self-researched and manufactured by our company. This series of products have high efficiency, long working lifespan and good reliability (no trouble like dying when starting after long-time stopping to use)
which are the best choice adapting to building fire-used and spraying-used pump. The function of products complies with GB6245 The Function Requirement and Test Methods of Fire Pump and passes the test of The Quality Supervising and Testing Center of National Fire Equipment so that the products are now playing a leading role in China and at the same time, obtain the permit from Shanghai Fire Bureau. The products are used to convey pure water with no solid particle under 80 and liquid with physical and chemical character similar to water. On the prerequisite of satisfying fire industry and mining, the products can both conform to the requirements of industry and mining in life and factory water-supplying, that is to say, the products can be applied in water-supplying system of fire-preventing and the one in shared water-supplying system of fire-preventing and life and in building, municipal construction ,industry and mining, water-supplying and draining, shipping and field operation as well.
The whole set of XBC Diesel Engine Fire Pump and electric appliances can self-finish the starting procedure and quickly put into full-load operation with its comprehensive function, high automatic level, tight structure, problem-alarming and starting signal-accepting. The whole machine has been develop with vibration reducing machine, rubber connecting point, wave tube voice eliminating machine at exhaust. Under the circumstance of less fuel, low voltage in storage battery, high temperature of lubricating oil and speed-exceeding , the alarm apparatus and pre-heating apparatus of the entire system will make sure to start the Diesel Engine under low temperature, which is totally safe, reliable and convenient to use.
III Xbd/C Type Motor/Engine Fire-Fighting Units Capability
Motor pump is main fire pump, it will auto start on fire time
Jockey pump maintain the system pressure
Diesel pump is back up pump, it will auto start without electricity
Diesel pump will auto start when Motor pump was breakdown
IV
Type | Basic figure for flexible joint dimensions | Basic figure for frigid joint dimmensions | ||||||||||||
K1 | B1 | K2 | B2 | K | B | D | Fd | K1d | B1d | K2d | B2d | Kd | Bd | |
XBC1.9/5-50 | 750 | 216 | 1110 | 366 | 1160 | 416 | 130 | 8.5 | 750 | 216 | 1110 | 300 | 1160 | 350 |
XBC2.9/5-50 | 850 | 240 | 1210 | 390 | 1260 | 440 | 130 | 8.5 | 850 | 240 | 1210 | 390 | 1260 | 440 |
XBC3.8/5-50 | 908 | 240 | 1268 | 390 | 1318 | 440 | 130 | 8.5 | 908 | 240 | 1268 | 390 | 1318 | 440 |
XBC4.8/5-50 | 939 | 385 | 1299 | 535 | 1349 | 585 | 130 | 8.5 | 939 | 385 | 1299 | 535 | 1349 | 585 |
XBC5.8/5-50 | 997 | 385 | 1357 | 535 | 1407 | 585 | 130 | 8.5 | 997 | 385 | 1357 | 535 | 1407 | 585 |
XBC6.8/5-50 | 1055 | 385 | 1415 | 535 | 1465 | 585 | 130 | 8.5 | 1055 | 385 | 1415 | 535 | 1465 | 585 |
XBC7.8/5-50 | 1390 | 445 | 1750 | 535 | 1800 | 645 | 130 | 8.5 | 1390 | 445 | 1750 | 535 | 1800 | 605 |
XBC2.9/10-65 | 781 | 385 | 1141 | 535 | 1191 | 585 | 130 | 8.5 | 781 | 385 | 1141 | 535 | 1191 | 685 |
XBC4.0/10-65 | 1130 | 445 | 1490 | 595 | 1540 | 645 | 130 | 8.5 | 1130 | 445 | 1490 | 535 | 1540 | 605 |
XBC5.0/10-65 | 1208 | 445 | 1568 | 595 | 1618 | 645 | 130 | 8.5 | 1208 | 445 | 1568 | 535 | 1618 | 605 |
XBC6.1/10-65 | 1286 | 445 | 1646 | 595 | 1696 | 645 | 130 | 8.5 | 1285 | 445 | 1646 | 535 | 1696 | 605 |
XBC2.0/15-80 | 660 | 445 | 1070 | 635 | 1120 | 685 | 170 | 12.5 | 660 | 445 | 1070 | 535 | 1120 | 585 |
XBC4.0/15-80 | 1025 | 445 | 1435 | 695 | 1485 | 745 | 170 | 12.5 | 1025 | 445 | 1435 | 555 | 1485 | 605 |
XBC6.0/15-80 | 1120 | 445 | 1530 | 695 | 1580 | 745 | 170 | 12.5 | 1120 | 445 | 1530 | 555 | 1580 | |
XBC8.0/15-80 | 1215 | 445 | 1625 | 695 | 1675 | 745 | 170 | 12.5 | 1215 | 445 | 1625 | 555 | 1675 | |
XBC3.7/20-80 | 1025 | 445 | 1435 | 695 | 1485 | 745 | 170 | 12.5 | 1025 | 445 | 1435 | 555 | 1485 | |
XBC5.7/20-80 | 1120 | 445 | 1530 | 695 | 1580 | 745 | 170 | 12.5 | 1120 | 445 | 1530 | 555 | 1580 | |
XBC7.6/20-80 | 1068 | 445 | 1478 | 695 | 1528 | 745 | 170 | 12.5 | 1068 | 445 | 1478 | 555 | 1528 | |
XBC3.1/25-80 | 930 | 445 | 1340 | 695 | 1390 | 745 | 170 | 12.5 | 930 | 445 | 1340 | 555 | 1390 | |
XBC4.7/25-80 | 1025 | 445 | 1435 | 695 | 1485 | 745 | 170 | 12.5 | 1025 | 445 | 1435 | 555 | 1485 | |
XBC6.4/25-80 | 1315 | 445 | 1725 | 695 | 1775 | 745 | 170 | 12.5 | 1315 | 445 | 1725 | 555 | 1775 | |
XBC3.7/30-80 | 1025 | 445 | 1435 | 695 | 1485 | 745 | 170 | 12.5 | 1025 | 445 | 1435 | 555 | 1485 | |
XBC4.9/30-80 | 1315 | 445 | 1725 | 695 | 1775 | 745 | 170 | 12.5 | 1315 | 445 | 1725 | 555 | 1775 | |
XBC5.7/30-100 | 1075 | 445 | 1725 | 695 | 1775 | 745 | 170 | 12.5 | 1075 | 445 | 1725 | 555 | 1775 | 605 |
XBC9.3/30-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 445 | 1920 | 555 | 1970 | 900 |
XBC12.8/30-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 445 | 2050 | 555 | 2100 | 900 |
XBC5.4/35-100 | 1075 | 445 | 1725 | 785 | 1775 | 835 | 260 | 12.5 | 1075 | 694 | 1725 | 555 | 1775 | 605 |
XBC7.1/35-100 | 1930 | 445 | 2580 | 785 | 2630 | 835 | 260 | 12.5 | 1930 | 694 | 2580 | 555 | 2630 | 605 |
XBC8.0/35-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 445 | 1920 | 850 | 1970 | 900 |
XBC9.0/35-100 | 1270 | 694 | 2050 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC10.8/35-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 694 | 2050 | 555 | 2100 | 900 |
XBC12.5/35-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 694 | 2050 | 555 | 2100 | 900 |
XBC5.3/40-100 | 1105 | 445 | 1755 | 785 | 1805 | 835 | 260 | 12.5 | 1105 | 445 | 1755 | 850 | 1805 | 605 |
XBC8.8/40-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC12.0/40-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 694 | 2050 | 850 | 2100 | 900 |
XBC5.2/45-100 | 1105 | 445 | 1755 | 785 | 1805 | 835 | 260 | 12.5 | 1105 | 445 | 1755 | 555 | 1805 | 605 |
XBC8.5/45-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC11.8/45-100 | 1820 | 694 | 2470 | 1034 | 2520 | 1084 | 260 | 12.5 | 1820 | 694 | 2470 | 850 | 2520 | 900 |
XBC3.9/50-100 | 1075 | 445 | 1725 | 785 | 1775 | 835 | 260 | 12.5 | 1075 | 445 | 1725 | 555 | 1775 | 605 |
XBC6.1/50-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC8.6/50-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 694 | 2050 | 850 | 2100 | 900 |
XBC11.0/50-100 | 1820 | 694 | 2470 | 1034 | 2520 | 1084 | 260 | 12.5 | 1820 | 694 | 2470 | 850 | 2520 | 900 |
XBC4.7/55-100 | 1800 | 445 | 2450 | 785 | 2500 | 835 | 260 | 12.5 | 1800 | 445 | 2450 | 555 | 2500 | 605 |
XBC7.6/55-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC10.5/55-100 | 1820 | 694 | 2470 | 1034 | 2520 | 1084 | 260 | 12.5 | 1820 | 694 | 2470 | 850 | 2520 | 900 |
XBC5.1/60-125 | 1820 | 445 | 2470 | 785 | 2520 | 835 | 260 | 12.5 | 1820 | 445 | 2470 | 555 | 2520 | 605 |
XBC7.4/60-125 | 1404 | 694 | 2054 | 1034 | 2104 | 1084 | 260 | 12.5 | 1404 | 694 | 2054 | 850 | 2104 | 900 |
XBC9.0/60-125 | 1404 | 694 | 2054 | 1034 | 2104 | 1084 | 260 | 12.5 | 1404 | 694 | 2054 | 850 | 2104 | 900 |
XBC5.4/65125 | 1274 | 694 | 1924 | 1034 | 1974 | 1084 | 260 | 12.5 | 1274 | 694 | 1924 | 850 | 1974 | 900 |
XBC8.8/65-125 | 1744 | 694 | 2394 | 1034 | 2444 | 1084 | 260 | 12.5 | 1744 | 694 | 2394 | 850 | 2444 | 900 |
XBC3.4/70-125 | 1165 | 445 | 1815 | 785 | 1865 | 835 | 260 | 12.5 | 1165 | 445 | 1815 | 555 | 1865 | 605 |
XBC5.8/70-125 | 1404 | 694 | 2054 | 1034 | 2104 | 1084 | 260 | 12.5 | 1404 | 694 | 2054 | 850 | 2104 | 900 |
XBC8.6/70-125 | 1744 | 694 | 2394 | 1034 | 2444 | 1084 | 260 | 12.5 | 1744 | 694 | 2394 | 850 | 2444 | 900 |
XBC4.5/80-125 | 1274 | 694 | 1924 | 1034 | 1974 | 1084 | 260 | 12.5 | 1274 | 694 | 1924 | 850 | 1974 | 900 |
XBC7.6/80-125 | 1744 | 694 | 2394 | 1034 | 1244 | 1084 | 260 | 12.5 | 1744 | 694 | 2394 | 850 | 2444 | 900 |

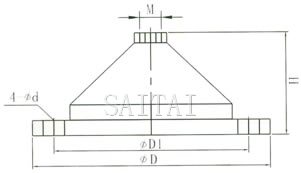

V Xbc Type Diesed Engine Fire Pump Base Mounting Dimensions
TYPE | M | D | D1 | H | d |
JGD2 | 12 | 150 | 130 | 65 | 7 |
JGD3 | 16 | 200 | 170 | 87 | 11 |
JGD4 | 20 | 290 | 260 | 133 | 11 |
