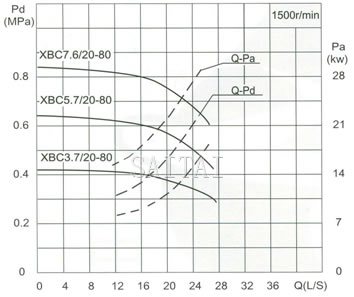

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S SeriesI Performance Data
| Type |
Capacity (L/S) |
Pd Pressure (MPa) |
P Motor Power KW |
n Speed (r/min) |
Efficiency (%) |
(NPSH)r (m) |
| XBC3.7/20-80 | 20 | 0.37 | 13.8 | 1500 | 64 | 4.2 |
| XBC5.3/20-80 | 0.53 | 1800 | ||||
| XBC5.7/20-80 | 20 | 0.57 | 20.6 | 1500 | 64 | 4.2 |
| XBC8.2/20-80 | 0.82 | 1800 | ||||
| XBC7.6/20-80 | 20 | 0.76 | 28.0 | 1500 | 64 | 4.2 |
| XBC10.9/20-80 | 1.09 | 1800 |

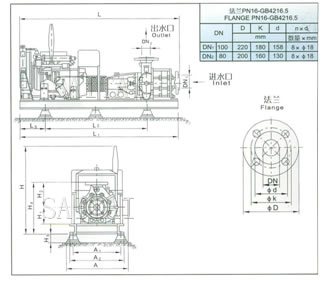

II 20l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions
| Type | H1 | H2 | H3 | H4 | H | L | L1 | L2 | L3 | A1 | A2 | A | Vibration Isolator |
Weight (KG) |
|
| Type | NO. | ||||||||||||||
| XBC3.7/20-80 5.3 |
200 | 325 | 87 | 625 | 900 | 1590 | 1385 | 965 | 180 | 445 | 505 | - | JGD3 | 4 | 486 |
| XBC5.7/20-80 8.2 |
200 | 325 | 87 | 625 | 900 | 1685 | 1480 | 1060 | 180 | 445 | 505 | - | JGD3 | 4 | 548 |
| XBC7.6/20-80 10.9 |
200 | 325 | 87 | 625 | 900 | 1780 | 1428 | 1008 | 180 | 445 | 505 | - | JGD3 | 4 | 590 |
