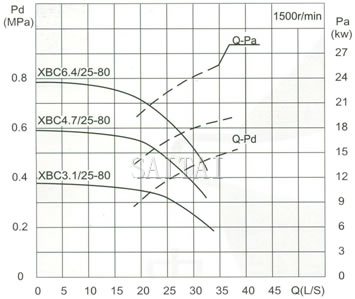

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S SeriesI Performance Data
| Type |
Capacity (L/S) |
Pd Pressure (MPa) |
P Motor Power KW |
n Speed (r/min) |
Efficiency (%) |
(NPSH)r (m) |
| XBC3.1/25-80 | 25 | 0.31 | 13.8 | 1500 | 69 | 3.6 |
| XBC4.5/25-80 | 0.45 | 1800 | ||||
| XBC4.7/25-80 | 25 | 0.47 | 20.6 | 1500 | 69 | 3.6 |
| XBC6.8/25-80 | 0.68 | 1800 | ||||
| XBC6.4/25-80 | 25 | 0.64 | 28.0 | 1500 | 69 | 3.6 |
| XBC9.2/25-80 | 0.92 | 1800 |

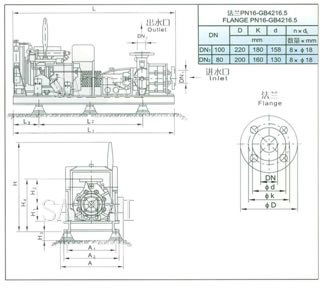

II 25l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions
| Type | H1 | H2 | H3 | H4 | H | L | L1 | L2 | L3 | A1 | A2 | A | Vibration Isolator |
Weight (KG) |
|
| Type | NO. | ||||||||||||||
| XBC3.1/25-80 4.5 |
200 | 325 | 87 | 625 | 900 | 1495 | 1290 | 870 | 180 | 445 | 505 | - | JGD3 | 4 | 447 |
| XBC4.7/25-80 6.8 |
200 | 325 | 87 | 625 | 900 | 1590 | 1385 | 965 | 180 | 445 | 505 | - | JGD3 | 4 | 510 |
| XBC6.4/25-80 9.2 |
200 | 325 | 87 | 625 | 900 | 1885 | 1675 | 1225 | 180 | 445 | 505 | - | JGD3 | 4 | 553 |
