50/55 L/S Xbc Type Diesed Engine Fire Pump

RELATED PRODUCTS

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S Series
35L/S Series 40/45 L/S Series 50/55 L/S Series 60/65 L/S Series 70/80 L/S Series

I Performance Data

Type	Capacity (L/S)	Pd Pressure (MPa)	P Motor Power KW	n Speed (r/min)	Efficiency (%)	(NPSH)r (m)
XBC3.9/50-100	50	0.39	31.6	1500	70	2.5
XBC5.6/50-100	50	0.56	31.6	1800	70	2.5
XBC6.1/50-100	50	0.61	58.8	1500	70	2.5
XBC8.6/50-100	50	0.86	73.5	1500	70	2.5
XBC11.0/50-100	50	1.10	88.3	1500	70	2.5
XBC4.7/55-100	55	0.47	40.4	1500	69	2.5
XBC6.7/55-100	55	0.67	40.4	1800	69	2.5
XBC7.6/55-100	55	0.76	73.5	1500	69	2.5
XBC10.5/55-100	55	1.05	88.3	1500	69	2.5

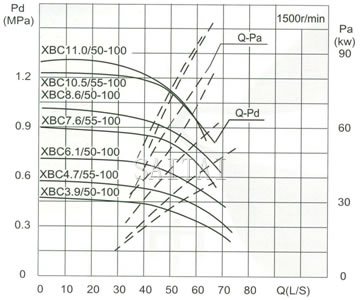

Capacity Drawing

Capacity:50/55 L/S Pressure:0.39-1.05MPa

Structure Of 50/55 L/S Xbc Type Diesed Engine Fire Pump

Structure Of 50/55 L/S Xbc Type Diesed Engine Fire Pump

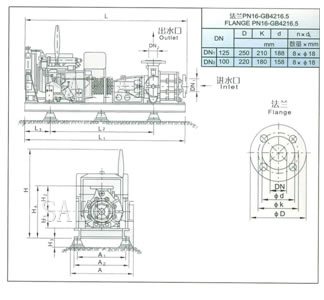

II 50/55 L/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type	H1	H2	H3	H4	H	L	L1	L2	L3	A1	A2	A	Vibration Isolator		Weight (KG)
Type	H1	H2	H3	H4	H	L	L1	L2	L3	A1	A2	A	Type	NO.	Weight (KG)
XBC3.9/50-100 5.6	280	400	133	800	920	1803	1675	1025	300	445	505	-	JGD4	4	583
XBC6.1/50-100	280	400	133	800	1205	2661	1870	1220	300	694	800	777	JGD4	4	1187
XBC8.6/50-100	280	400	133	800	1205	2791	2000	1350	300	694	800	777	JGD4	4	1261
XBC11.0/50-100	280	400	133	800	1355	2556	2420	1770	300	694	800	795	JGD4	4	1551
XBC4.7/55-100 6.7	280	400	133	800	2040	2260	2400	1750	300	445	505	690	JGD4	4	753
XBC7.5/55-100	280	400	133	800	1205	2661	1870	1220	300	694	800	777	JGD4	4	1187
XBC10.5/55-100	280	400	133	800	1355	2556	2420	1770	300	694	800	795	JGD4	4	1551
