15l/S Xbc Type Diesed Engine Fire Pump

RELATED PRODUCTS

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S Series
35L/S Series40/45 L/S Series 50/55 L/S Series 60/65 L/S Series 70/80 L/S Series

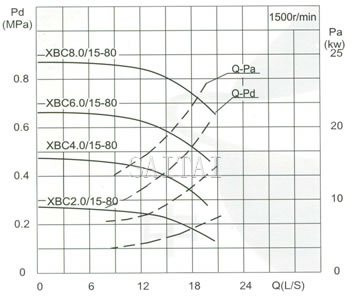

I Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC2.0/15-80 15 0.20 8.8 1500 66 3.2
XBC2.9/15-80 0.29 1800
XBC4.0/15-80 15 0.40 13.8 1500 66 3.2
XBC5.8/15-80 0.58 1800
XBC6.0/15-80 15 0.60 15.3 1500 66 3.2
XBC8.6/15-80 0.86 1800
XBC8.0/15-80 15 0.80 20.6 1500 66 3.2
XBC11.5/15-80 1.15 1800
Capacity:15 L/S Pressure:0.20-1.15MPa
Capacity:15 L/S Pressure:0.20-1.15MPa
Capacity:15 L/S Pressure:0.20-1.15MPa
Structure Of 15l/S Xbc Type Diesed Engine Fire Pump

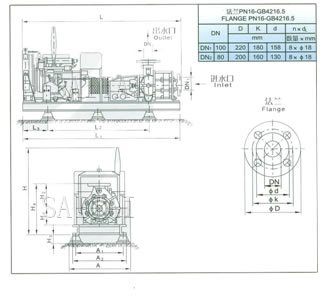

II 15l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC2.0/10-65
2.9		 200 325 87 625 640 1125 1020 600 180 385 485 800 JGD3 4 265
XBC4.0/15-80
5.8		 200 325 87 625 900 1590 1385 965 180 445 505 - JGD3 4 486
XBC6.0/15-80
8.6		 200 325 87 625 900 1685 1480 1060 180 445 505 - JGD3 4 518
XBC8.0/15-80
11.5		 200 325 87 625 900 1780 1575 1155 180 445 505 - JGD3 4 580
