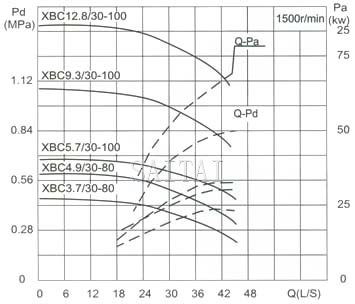

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S SeriesI Performance Data
| Type |
Capacity (L/S) |
Pd Pressure (MPa) |
P Motor Power KW |
n Speed (r/min) |
Efficiency (%) |
(NPSH)r (m) |
| XBC3.7/30-80 | 30 | 0.37 | 20.6 | 1500 | 66 | 2.0 |
| XBC5.3/30-80 | 0.53 | 1800 | ||||
| XBC4.9/30-80 | 30 | 0.49 | 28 | 1500 | 66 | 2.0 |
| XBC7.0/30-80 | 0.70 | 1800 | ||||
| XBC5.7/30-100 | 30 | 0.57 | 28 | 1500 | 66 | 2.0 |
| XBC8.2/30-100 | 0.82 | 1800 | ||||
| XBC9.3/30-100 | 30 | 0.93 | 58.8 | 1500 | 66 | 2.0 |
| XBC12.8/30-100 | 30 | 1.28 | 58.8 | 1500 | 66 | 2.0 |

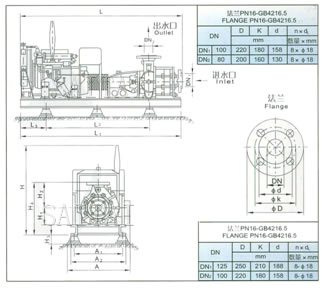

II 30l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions
| Type | H1 | H2 | H3 | H4 | H | L | L1 | L2 | L3 | A1 | A2 | A | Vibration Isolator |
Weight (KG) |
|
| Type | NO. | ||||||||||||||
| XBC3.7/30-80 5.3 |
200 | 325 | 87 | 625 | 900 | 1590 | 1385 | 965 | 180 | 445 | 505 | - | JGD3 | 4 | 510 |
| XBC4.9/30-80 7.0 |
200 | 325 | 87 | 625 | 900 | 1885 | 1675 | 1255 | 180 | 445 | 505 | - | JGD3 | 4 | 553 |
| XBC5.7/30-100 8.2 |
280 | 400 | 87 | 800 | 920 | 1803 | 1675 | 1025 | 300 | 45 | 505 | - | JGD3 | 4 | 583 |
| XBC9.3/30-100 | 280 | 400 | 133 | 800 | 1205 | 2661 | 1870 | 1220 | 300 | 694 | 800 | 777 | JGD3 | 4 | 1187 |
| XBC12.8/30-100 | 280 | 400 | 133 | 800 | 1205 | 2791 | 2000 | 1350 | 300 | 694 | 800 | 777 | JGD3 | 4 | 1261 |
30l/S Xbc Type Diesed Engine Fire Pump Related Products
