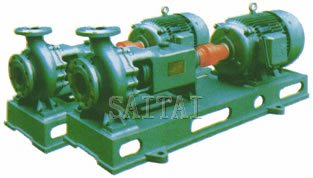

FIJ型悬臂式化工离心泵

FIJ型悬臂式化工离心泵（简称FIJ化工离心泵）是在IH系列泵的基础上，参照国外新技术并结合用户实际使用后而优化设计的新产品。其额定性能和安装尺寸符合ISO2858标准，制造技术条件符合ISO5199标准，FLJ型悬臂式化工离心泵主要适用于化工流程中的含固体量小于50％之内的浆液以及含结晶杂质介质的输送。

FIJ化工离心泵特点

1、缩短了叶轮的悬臂，加粗了轴的直径；
2、非对称截面的蜗壳、泵壳无口环；
3、采用三只进口轴承；
4、装有与国外先进的双端面机械密封或填料密封相似的新型密封。

FIJ化工离心泵优越性

1、可以输送高粘度或含固体的介质，这时泵的效率较IH泵；
2、非对称截面蜗壳减少了流体的冲击损失，缩短了泵壳尺寸；
3、增加轴的强度，减少了转子的挠度，因而运行稳定、密封寿命长；
4、叶轮螺母与叶轮做成一体，改善了泵的入口条件，提高泵的抗汽蚀性能；
5、先进的轴密封形式，使密封效果更佳，减少了泵的泄漏；
6、可以不拆卸泵壳和叶轮的情况下调节泵的间隙，减少了维修时间，节省维修成本。

FIJ型悬臂式化工离心泵

FIJ化工离心泵性能参数表

泵型号 Model	流量Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)	功率P(KW) Power		效率Efficiency η (％)	必需汽蚀余量 NPSH r (m)
泵型号 Model	m3/h	L/S	扬程 Head H(m)	转速 Speed (r/min)	轴功率 Shaft Power	电机功率 Motor Power	效率Efficiency η (％)	必需汽蚀余量 NPSH r (m)
FIJ32-20-125	3.2	0.88	20	2900	0.48	按液体的比重和粘度选用 Select according to viscosity and granity of liquid	35	5.0
FIJ32-20-160	3.2	0.88	32		0.93		30	3.5
FIJ32-20-200	3.2	0.88	50		1.62		27	4.0
FIJ32-20-250	3.2	0.88	80		4.1		17	4.5
FIJ40-20-125	6.3	1.74	20		0.66		52	5.0
FIJ40-25-160	6.3	1.74	32		1.53		36	3.5
FIJ40-25-200	6.3	1.74	50		2.52		34	3.5
FIJ40-25-250	6.3	1.74	80		5.3		26	4.5
FIJ50-32-125	7.5	2.08	23	2900	1.09		43	2.0
	12.5	3.47	20		1.33		51	2.0
	15.0	4.17	18		1.50		49	2.5
FIJ50-32-125A	6.8	1.89	18.8	2900	1.87		40	2.0
	11.3	3.14	16.4		1.01		50	2.0
	13.6	3.78	14.7		1.16		47	2.5
FIJ50-32-125	3.75	1.04	5.57	1450	0.16		36	2.0
	6.3	1.74	5.0		0.19		45	2.0
	7.5	2.08	4.5		0.21		44	2.0
FIJ50-32-125A	3.4	0.94	4.7	1450	0.13		33.3	2.0
	5.7	1.59	4.1		0.149		43	2.0
	6.8	1.89	3.7		0.163		42	2.2
FIJ50-32-160	7.5	2.08	34.5	2900	2.13		33	2.0
	12.5	3.47	32		2.37		46	2.0
	15.0	4.17	30		2.45		50	2.5
FIJ50-32-160A	6.8	1.89	28.5	2900	1.76		30	2.0
	11.3	3.14	26.4		1.85		44	2.0
	13.6	3.78	24.8		1.91		48	2.5
FIJ50-32-160	3.75	1.04	8.6	1450	0.30		29	2.0
	6.3	1.74	8.0		0.34		40	2.0
	7.5	2.08	7.5		0.36		43	2.2
FIJ50-32-160A	3.4	0.94	7.1	1450	0.253		25.9	2.0
	5.7	1.59	6.6		0.277		37.1	2.0
	6.8	1.89	6.2		0.280		41	2.2
FIJ50-32-200	7.5	2.08	51.8	2900	3.78		28	2.0
	12.5	3.47	50		4.36		39	2.0
	15.0	4.17	48		4.56		43	2.5
FIJ50-32-200A	6.8	1.89	42.7	2900	3.16		25	2.0
	11.3	3.14	41		3.24		38	2.0
	13.6	3.78	39.5		3.57		41	2.5
FIJ50-32-200	3.75	1.04	12.9	1450	0.57		23	2.0
	6.3	1.74	12.5		0.65		33	2.0
	7.5	2.08	12.0		0.68		36	2.2
FIJ50-32-200A	3.4	0.94	10.6	1450	0.488		20	2.0
	5.7	1.59	10.3		0.516		31	2.0
	6.8	1.89	9.9		0.540		34	2.2
FIJ50-32-250	7.5	2.08	82	2900	7.28		23	2.0
	12.5	3.47	80		8.25		33	2.0
	15.0	4.17	78.5		8.79		36.5	2.5
FIJ50-32-250A	7	1.94	71.9	2900	6.84		20	2.0
	11.7	3.25	70		6.97		32	2.0
	14	3.89	68.8		7.71		34	2.5
FIJ50-32-250B	6.6	1.83	63.6	2900	5.71		20	2.0
FIJ50-32-250B	11.0	3.06	62	2900	6.19		30	2.0
FIJ50-32-250	3.75	1.04	20.5	1450	1.23		17	2.0
	6.3	1.74	20		1.27		27	2.0
	7.5	2.08	6.2		1.29		31	2.2
FIJ50-32-250A	3.51	0.98	18.0	1450	1.12		15.4	2.0
	5.9	1.64	17.5		1.125		25	2.0
	7.02	1.95	17.2		1.18		27.9	2.2
FIJ65-50-125	15	4.17	21.3	2900	1.85		47	2.0
	25	6.94	20		2.2		62	2.0
	30	8.33	18.6		2.4		63	2.5

泵型号 Model	流量 Q Capacity Q		扬程 Head H(m)	转速 Speed(r/min)	功率 P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
泵型号 Model	M3/h	L/S	扬程 Head H(m)	转速 Speed(r/min)	轴功率Shaft Power	电机功率Motor Power	效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
FIJ65-50-125A	13.6	3.78	17.6	2900	1.48	按液体的比重和粘度选用 Select according to viscosity and granite of liquid	44	2
	22.7	6.31	16.5		1.67		61	2
	27.3	7.58	15.4		1.91		59.9	2.5
FIJ65-50-125	7.5	2.08	5.4	1450	0.25		44	2
	12.5	3.47	5		0.31		55	2
	15	4.17	4.5		0.33		56	2.2
FIJ65-50-125A	6.8	1.89	4.5	1450	0.23		41	2
	11.3	3.14	4.1		0.234		54	2
	13.6	3.78	3.7		0.258		53	2.2
FIJ65-50-160	15	4.17	34.2	2900	3.18		44	2
	25	6.94	32		3.82		57	2
	30	8.33	30		4.15		59	2.5
FIJ65-50-160A	13.6	3.78	28.4	2900	2.56		41	2
	22.7	6.31	26.5		2.93		56	2
	27.3	7.58	24.8		3.29		56	2.5
FIJ65-50-160	7.5	2.08	8.55	1450	0.45		39	2
	12.5	3.47	8		0.53		51	2
	15	4.17	7.5		0.58		52.5	2.2
FIJ65-50-160A	6.8	1.89	7.09	1450	0.37		35.5	2
	11.3	3.14	6.6		0.41		49.6	2
	13.6	3.78	6.2		0.46		49.9	2.2
FIJ65-40-200	15	4.17	53.2	2900	5.3		41	2
	25	6.94	50		6.55		52	2
	30	8.33	47.6		7.27		53.5	2.5
FIJ65-40-200A	13.6	3.78	43.9	2900	4.28		38	2
	22.7	6.31	41		5.07		50	2
	27.3	7.58	39.3		5.73		51	2.5
FIJ65-40-200	7.5	2.08	13.3	1450	0.78		35	2
	12.5	3.47	12.5		0.93		46	2
	15	4.17	11.9		1.02		47.5	2.2
FIJ65-40-200A	6.8	1.89	11	1450	0.64		31.8	2
	11.3	3.14	10.3		0.72		44	2
	13.6	3.78	9.8		0.81		44.8	2.2
FIJ65-40-250	15	4.17	81.2	2900	9.76		34	2
	25	6.94	80		11.84		46	2
	30	8.33	78.4		12.8		50	2.5
FIJ65-40-250A	14	3.89	71	2900	8.73		31	2
	23.4	6.5	74.8		10.6		45	2
	28	7.78	68.6		11.13		47	2.5
FIJ65-40-250B	13.2	3.67	62.8	2900	7.29		31	2
	22	6.11	61.8		8.42		44	2
	26.4	7.33	53		8.45		45	2.5
FIJ65-40-250	7.5	2.08	20.3	1450	1.48		28	2
	12.5	3.47	20		1.75		39	2
	15	4.17	19.6		1.86		43	2.2
FIJ65-40-250A	7	1.94	17.8	1450	1.35		25	2
	11.7	3.25	17.5		1.47		37.9	2
	14	3.89	17.2		1.64		40	2.2
FIJ65-40-315	15	4.17	126.8	2900	18.5		28	2
	25	6.94	125		21.8		39	2
	30	8.33	124		23.8		42.5	2.5
FIJ65-40-315A	14	3.89	111.2	2900	18.1		25	2
	23.4	6.5	109.5		18.36		38	2
	28	7.78	108.8		22.12		40	2.5
FIJ65-40-315B	13.2	3.67	98	2900	14.69		24	2
	22	6.11	96.5		15.63		37	2
	26.4	7.33	95.9		17.67		39	2.5
FIJ65-40-315	7.5	2.08	32.4	1450	3		22	2
	12.5	3.47	32		3.3		33	2
	15	4.17	31.7		3.5		37	2.2
FIJ65-40-315A	7	1.94	28.4	1450	2.84		19	2
	11.7	3.25	28		2.78		31	2
	14	3.89	27.8		3.12		34	2.2

泵型号 Model		流量 Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)	功率P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
FIJ80-65-125	30		8.33	23.2	2900	3.16	按液体的比重和粘度选用 Select according to viscosity and granite of liquid	60	3
	50		13.9	20		3.95		69	3
	60		16.7	17.6		4.29		67	4
FIJ80-65-125A	27.2		7.56	19.1	2900	2.48		57	3
	45.3		12.58	16.5		3.04		67	3
	54.4		15.12	14.5		3.36		64	4
FIJ80-65-125	15		4.17	5.8	1450	0.44		54	3
	25		6.94	5		0.53		64	3
	30		8.33	4.4		0.58		62	4
FIJ80-65-125A	13.6		3.78	4.8	1450	0.349		51	3
	22.6		6.28	4.1		0.407		62	3
	27.2		7.56	3.6		0.452		59	4
FIJ80-65-160	30		8.33	36	2900	5.16		57	2
	50		13.9	32		6.5		67	2.3
	60		16.7	28.4		7.14		65	3.3
FIJ80-65-160A	27.2		7.56	29.7	2900	4.08		54	2
	45.4		12.6	26.4		5.02		65	2.3
	54.4		15.12	23.4		5.39		62	3.3
FIJ80-65-160	15		4.17	9	1450	0.74		50	2
	25		6.94	8		0.88		62	2.3
	30		8.33	7.2		0.95		62	3.3
FIJ80-65-160A	13.6		3.78	7.4	1450	0.58		47.3	2
	22.7		6.31	6.6		0.68		60	2.3
	27.2		7.56	5.9		0.74		59	3.3
FIJ80-50-200	30		8.33	55.2	2900	8.5		53	2
	50		13.9	50		10.8		63	2.5
	60		16.7	45.2		11.9		62	3.2
FIJ80-50-200A	27.2		7.56	45.4	2900	6.73		50	2
	45.3		12.58	41		8.29		61	2.5
	54.4		15.12	37.2		9.35		59	3.2
FIJ80-50-200	15		4.17	13.5	1450	1.25		44	2
	25		6.94	12.5		1.49		57	2.3
	30		8.33	11.5		1.6		58	3.3
FIJ80-50-200A	13.6		3.78	11.1	1450	1		41	2
	22.7		6.31	10.3		1.135		56.1	2.3
	27.2		7.56	9.5		1.28		55	3.3
FIJ80-50-250	30		8.33	84	2900	16		43	2.5
	50		13.9	80		20.6		53	2.5
	60		16.7	75		12.7		54	2.5
FIJ80-50-250A	28.14		7.82	73.55	2900	13.2		42.7	2.5
	46.9		13.03	70.5		16.1		56	2.5
	56.28		15.63	67.4		17.8		58.03	3
FIJ80-50-250B	26.4		7.33	64.8	2900	11.4		40.86	2.5
	44		12.22	62.2		13.8		54	2.5
	52.8		14.67	60		15		57.52	3
FIJ80-50-250	15		4.17	21	1450	2.15		40	2.5
	25		6.94	20		2.72		50	2.5
	30		8.33	18.8		3.01		51	2.5
FIJ80-50-250A	14.04		3.9	18.2	1450	1.66		42	2.5
	23.4		6.5	17.6		2.25		50	2.5
	28.08		7.8	16.7		2.63		48.5	2.5
FIJ80-50-315	30		8.33	128	2900	33.1		38	2.5
	50		13.9	125		34.1		50	2.5
	60		16.7	123		38		53	3
FIJ80-50-315A	28.14		7.82	113.4	2900	21.5		40.4	2
	46.9		13.03	110		28.1		50	2
	56.28		15.63	107.7		30		55	2.5
FIJ80-50-315B	26.4		7.33	100.5	2900	17		43.5	2
	44		12.22	97		24.2		48	2
	52.8		14.67	95		25		54.6	2.5
FIJ80-50-315	15		4.17	32.5	1450	3.59		37	2.5
	25		6.94	32		4.54		48	2.5
	30		8.33	31.5		4.95		52	3

泵型号 Model	流量Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)		功率P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量NPSH r (m)
FIJ80-50-315A	14.1	3.92	29.2	1450	3.52		按液体的比重和粘度选用 Select according to viscosity and granite of liquid	31.8	2.5
	23.5	6.53	28.3		4.12			44	2.5
	28.2	7.83	27.1		4.41			47.2	3
FIJ100-80-125	60	16.7	23.7	2900	5.96			65	3
	100	27.8	20		7.47			73	4.2
	120	33.3	16.3		7.72			69	4.8
FIJ100-80-125A	55	15.3	19.4	2900	4.68			62	3
	91.8	25.5	16.8		5.9			71	4.2
	109	30.5	13.7		6.12			67	4.8
FIJ100-80-160	60	16.7	37	2900	10.1			60	3.8
	100	27.8	32		11.9			73	4.3
	120	33.3	28		12.5			73	5
FIJ100-80-160A	54.6	15.17	30.6	2900	7.98			57	3.8
	91	25.28	26.5		9.25			71	4.3
	109.2	30.34	23.2		9.85			70.4	5
FIJ100-80-160	30	8.33	9.25	1450	1.3			58	3.8
	50	13.9	8		1.58			69	4.3
	60	16.7	7		1.68			68	5
FIJ100-80-160A	27.3	7.58	7.66	1450	1.03			55.3	3.8
	45.5	12.64	6.6		1.22			67	4.3
	54.6	15.16	5.8		1.32			65.3	5
FIJ100-65-200	60	16.7	56	2900	14.5			63	3.4
	100	27.8	50		18.9			72	3.9
	120	23.3	44		20.3			71	5.2
FIJ100-65-200A	54.6	15.17	46.5	2900	11.5			60.1	3.4
	91	25.28	41.5		14.7			70	3.9
	109.2	30.34	36.6		16			68	5.2
FIJ100-65-200	30	8.33	14	1450	1.91			60	3.4
	50	13.9	12.5		2.5			68	3.9
	60	16.7	11		2.85			63	5.3
FIJ100-65-200A	27.3	7.58	11.6	1450	1.51			57	3.4
	45.5	12.64	10.3		1.83			66	3.9
	54.6	15.16	9.1		2.25			60.1	5.2
FIJ100-65-250	60	16.7	88	2900	25.2			57	3
	100	27.8	80		32			68	3.6
	120	33.3	74		36.1			67	4.5
FIJ100-65-250A	56.11	15.58	77	2900	21.8			54	3
	93.5	25.97	70		27.4			65	3.6
	112.2	31.16	64.7		30.9			64	4.5
FIJ100-65-250B	52.7	14.64	67.9	2900	18.3			53.3	3
	87.8	24.39	61.7		23.1			64	3.6
	105.4	29.28	57		26			62.9	4.5
FIJ100-65-250	30	8.33	22	1450	3.6			50	3
	50	13.9	20		4.3			63	3.6
	60	16.7	18.5		4.7			64	4.5
FIJ100-65-250A	28	7.79	19.2	1450	3.12			47	3
	45.5	12.64	17.4		3.53			61	3.6
	56	15.58	16.2		4.06			60.9	4.5
FIJ100-65-315	60	16.7	132	2900	44.9			48	2.8
	100	27.8	125		54.9			62	3.2
	120	33.8	119		60.8			64	4.2
FIJ100-65-315A	56.1	15.58	115.5	2900	39.2			45	2.8
	93.5	25.97	109		45.5			61	3.2
	112.2	31.16	104		52.1			61	4.2
FIJ100-65-315B	52.7	14.64	102	2900	33.3			44	2.8
	88	24.44	97		38.7			60	3.2
	105.4	29.28	92		44			60	4.2
FIJ100-65-315	30	8.33	33.5	1450	6.2			44	2.8
	50	13.9	32		7.5			58	3.2
	60	16.7	30.5		8.3			60	4.2
FIJ100-65-315A	28	7.79	29.3	1450	5.46			41	2.8
	46.5	12.92	28		6.33			56	3.2
	56	15.58	26.7		7.15			57	4.2

泵型号 Model	流量 Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)	功率P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
FIJ125-80-160				2900		按液体的比重和粘度选用 Select according to viscosity and granite of liquid
	160	44.4	32		17.7		79	5.3

FIJ125-80-200				2900
	160	44.4	50		28.3		77	4.3

FIJ125-80-200				2900
	160	44.4	80		47.1		74	4

FIJ125-100-200	120	33.3	61	2900	29.3		68	4.5
	200	55.6	50		35.4		77	5
	240	66.7	41		38.3		70	5.8
FIJ125-100-200A	109.1	30.3	50.5	2900	23.1		64.9	4.5
	182	50.56	41.4		27.4		75	5
	218.2	60.6	34		30.1		67.1	5.8
FIJ125-100-200	60	16.7	15.25	1450	3.89		64	4.5
	100	27.8	12.5		4.66		73	5
	120	33.3	10.25		5.08		66	5.8
FIJ125-100-200A	54.7	15.2	12.6	1450	3.08		61	4.5
	91	25.28	10.3		3.6		71	5
	109.4	30.4	8.5		4.02		63	5.8
FIJ125-100-250	120	33.3	90	2900	47.4		62	3.7
	200	55.6	80		58.1		75	4.5
	240	66.7	73		64.5		74	5.5
FIJ125-100-250A	112	31.1	78	2900	40.3		59	3.7
	186.5	51.8	69.5		48.35		73	4.5
	224	62.2	63.5		54.5		71	5.5
FIJ125-100-250B	105.5	29.3	69	2900	34.2		58	3.7
	175.5	48.75	61.5		41.4		71	4.5
	211	58.6	56		46		69.9	5.5
FIJ125-100-250	60	16.7	22.5	1450	6.23		59	3.7
	100	27.8	20		7.56		72	4.5
	120	33.3	18.25		8.4		71	5.5
FIJ125-100-250A	56	15.56	19.5	1450	5.31		56	3.7
	93	25.83	17.4		6.29		70	4.5
	112	31.1	15.9		7.13		68	5.5
FIJ125-100-315	120	33.3	132.5	2900	65.3		52.6	4
	200	55.6	125		94.6		72	4.5
	240	66.7	120		103		75	5
FIJ125-100-315A	60	16.7	33.5	1450	10.3		53	4
	100	27.8	32		13.5		65	4.5
	120	33.3	30.5		15.1		66	5
FIJ125-100-400	60	16.7	52	1450	17.7		48	3.5
	100	27.8	50		24.8		55	3.5
	120	33.3	48.5		25.8		62	4
FIJ125-100-400A	54.6	15.17	46	1450	13		44	3.5
	91	25.28	41		19		51	3.5
	109.2	30.34	36.6		19.6		58	4
FIJ125-125-250	120	33.3	24.8	1450	12.3		66	2.5
	200	55.6	20		14.1		77	2.8
	240	66.7	15		14.4		68	3.5
FIJ125-125-250A	109.1	30.3	20.5	1450	9.7		62.8	2.5
	182	50.56	16.5		10.9		75	2.8
	218.2	60.6	12.4		11.3		65.2	3.5
FIJ125-125-315	120	33.3	36.3	1450	18.8		63	2.5
	200	55.6	32		23.2		75	2.8
	240	66.7	28.5		25.9		72	3.8
FIJ125-125-315A	109.1	30.3	30	1450	14.85		60	2.5
	182	50.56	25.5		17.32		73	2.8
	218.2	60.6	23.5		20.23		69	3.8
FIJ125-125-400	120	33.3	57.5	1450	30.8		61	2
	200	55.6	50		38.9		70	2.5
	240	66.7	44		45.6		63	3

泵型号 Model	流量Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)	功率P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
FIJ125-125-400A	109.1	30.3	47.5	1450	24.3	按液体的比重和粘度选用 Select according to viscosity and granite of liquid	58	2
	182	50.56	41		29.9		68	2.5
	218.2	60.6	36.5		36.1		60	3
FIJ200-150-250	240	66.7	23	1450	23.3			2.5
	400	111.1	20		29.4		74	2.8
	460	127.8	18		30.6			3
FIJ200-150-315	240	66.7	35.6	1450	34.7		67	3
	400	111.1	32		44.1		79	3.5
	460	127.8	29.4		47.8		77	4
FIJ200-150-315A	218.2	60.6	29.4	1450	27.3		64	3
	363	100.8	25.5		32.7		77	3.5
	418	116.1	24.3		37.4		74	4
FIJ200-150-400	240	66.7	55.8	1450	54.4		67	3
	400	111.1	50		69.8		78	3.5
	460	127.8	47		78.5		75	4
FIJ200-150-400A	218.2	60.6	46	1450	42.7		64	3
	363	100.8	41		53.3		76	3.5
	418	116.1	38.8		61.3		72	4
FIJ250-200-250A	600		12	1450
FIJ250-200-250B	540		11	1450
FIJ250-200-315A	650		24	1450
FIJ250-200-315B	600		20	1450
FIJ250-200-315C	550		16	1450
FIJ250-200-400A	650		52	1450
FIJ250-200-400B	550		45	1450
FIJ250-200-400C	500		40	1450
FIJ250-200-500A	700		75	1450
FIJ250-200-500B	650		65	1450
FIJ250-200-500C	550		55	1450
FIJ300-250-315A	950		22	1450
FIJ300-250-315B	900		20	1450
FIJ300-250-315C	800		16	1450
FIJ300-250-400A	1000		44	1450
FIJ300-250-400B	900		38	1450
FIJ300-250-400C	850		30	1450
FIJ300-250-500A	1200		80	1450
FIJ300-250-500B	1100		70	1450
FIJ300-250-500C	1000		55	1450

泵型号 Model	叶轮形式 impeller type	泵额定转速n=2900r/min speed
		流量 M3/h Capacity	扬程 H m Head	相对密度＝1.00		相对密度＝1.00		相对密度＝1.00
				relative density<1.0		relative density<1.35		relative density<1.86
				电机功率及型号 motor power or model
				Kw		Kw		Kw
FIJ32-20-125		3.2	20	1.1	YB802-2/1.1	1.5	YB802-2/1.1	1.5	YB90S-2/1.5
FIJ32-20-160		3.2	32	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
FIJ32-20-200		3.2	50	3	YB100L-2/3.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
FIJ32-20-250		3.2	80	5.5	YB132S1-2/5.5	11	YB132S2-2/7.5	11	YB160M1-2/11
FIJ40-25-160		6.3	20	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
FIJ40-25-160		6.3	32	2.2	YB90L-2/2.2	4	YB100L-2/3.0	4	YB112M-2/4.0
FIJ40-25-200		6.3	50	4	YB112M-2/4.0	7.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ40-25-250		6.3	80	7.5	YB132S2-2/7.5	15	YB160M1-2/11	15	YB160M2-2/15
FIJ50-32-125		12.5	20	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
FIJ50-32-125A		11.3	16.4	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
FIJ50-32-160		12.5	32	3	YB100L-2/3.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
FIJ50-32-160A		11.3	26.4	2.2	YB90L-2/2.2	4	YB100L-2/4.0	4	YB112M-2/4.0
FIJ50-32-200		12.5	50	5.5	YB132S1-2/5.5	11	YB132S2-2/7.5	11	YB160M1-2/11
FIJ50-32-200A		11.3	41	4	YB112M-2/4.0	7.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ50-32-250		12.5	80	11	YB160M1-2/11	18.5	YS160M2-2/15	18.5	YB160L-2/18.5
FIJ50-32-250A		11.7	70	7.5	YB132S2-2/7.5	15	YB160M1-2/11	15	YB160M2-2/15
FIJ50-32-250B		11	62	7.5	YB132S2-2/7.5	15	YB160M1-2/11	15	YB160M2-2/15
FIJ65-50-125		25	20	3	YB100L-2/3.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
FIJ65-50-125A		22.7	16.5	2.2	YB90L-2/2.2	4	YB100L-2/3.0	4	YB112M-2/4.0
FIJ65-50-160		25	32	5.5	YB132S1-2/5.5	7.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ65-50-160A		22.7	26.5	4	YB112M-2/4.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
FIJ65-40-200		25	50	7.5	YB132S2-2/7.5	11	YB160M1-2/11	15	YS160M2-2/15
FIJ65-40-200A		22.7	41	5.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5	11	YB160M1-2/11
FIJ65-40-250		25	80	15	YS160M2-2/15	18.5	YB160L-2/18.5	22	YB180M-2/22
FIJ65-40-250A		23.4	74.8	11	YB160M1-2/11	15	YS160M2-2/15	22	YB180M-2/22
FIJ65-40-250B		22	61.8	11	YB160M1-2/11	15	YS160M2-2/15	18.5	YB160L-2/18.5
FIJ65-40-315		25	125	30	YB200L1-2/30	30	YB200L1-2/30	45	YB225M-2/45
FIJ65-40-315A		23.4	109.5	22	YB180M-2/22	30	YB200L1-2/30	37	YB200L2-2/37
FIJ65-40-315B		22	96.5	18.5	YB160L-2/18.5	22	YB180M-2/22	30	YB200L1-2/30
FIJ80-65-125		50	20	4	YB112M-2/4.0	5.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ80-65-125A		45.3	16.5	4	YB112M-2/4.0	5.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ80-65-160		50	32	7.5	YB132S2-2/7.5	11	YB160M1-2/11	15	YS160M2-2/15
FIJ80-65-160A		45.4	26.4	5.5	YB132S1-2/5.5	7.5	YB132S1-2/5.5	11	YB160M1-2/11
FIJ80-50-200		50	50	11	YB160M1-2/11	15	YS160M2-2/15	22	YB180M-2/22
FIJ80-50-200A		45.3	41	11	YB160M1-2/11	15	YS160M2-2/15	18.5	YB160L-2/18.5
FIJ80-50-250		50	80	22	YB180M-2/22	30	YB200L1-2/30	45	YB225M-2/45
FIJ80-50-250A		46.9	70.5	18.5	YB160L-2/18.5	22	YB180M-2/22	30	YB200L1-2/30
FIJ80-50-250B		44	62.2	15	YB160M2-2/15	22		30
FIJ80-50-315		50	125	37	YB200L2-2/37	55	YB250M-2/55	75	YB280S-2/75
FIJ80-50-315A		46.9	110	30	YB200L1-2/30	45	YB225M-2/45	55	YB250M-2/55
FIJ80-50-315B		44	9.7	30	YB200L1-2/30	37	YB200L2-2/37	45	YB225M-2/45
FIJ100-80-125		100	20	11	YB160M1-2/11	11	YB160M1-2/11	15	YB160M2-2/15
FIJ100-80-125A		91.8	16.8	7.5	YB132S2-2/7.5	11	YB160M1-2/11	11	YB160M1-2/11
FIJ100-80-160		100	32	15	YB160M2-2/15	18.5	YB160L-2/18.5	22	YB180M-2/22
FIJ100-80-160A		91	26.5	11	YB160M1-2/11	15	YB160M2-2/15	18.5	YB160L-2/18.5
FIJ100-65-200		100	50	22	YB180M-2/22	30	YB200L1-2/30	37	YB200L2-2/37
FIJ100-65-200A		91	41.5	18.5	YB160L-2/18.5	22	YB180M-2/22	30	YB200L1-2/30

泵型号 Model	泵额定转速 n=1450r/min speed
	流量 M3/h Capacity	扬程 H m Head	相对密度＝1.84		相对密度＝1.00		相对密度＝1.25
			relative density<1.0		relative density<1.35		relative density<1.86

			Kw		Kw		Kw
FIJ32-20-125
FIJ32-20-160
FIJ32-20-200
FIJ32-20-250
FIJ40-25-160
FIJ40-25-160
FIJ40-25-200
FIJ40-25-250
FIJ50-32-125	6.3	5	0.55	YB801-4/0.55	0.55	YB801-4/0.55	0.55	YB801-4/0.55
FIJ50-32-125A	5.7	4.1					0.55	YB801-4/0.55
FIJ50-32-160	6.3	8					0.75	YB802-4/0.75
FIJ50-32-160A	5.7	6.6					0.75	YB802-4/0.75
FIJ50-32-200	6.3	12.5	0.75	YB802-4/0.75	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5
FIJ50-32-200A	5.7	10.3	0.75	YB802-4/0.75	0.75	YB802-4/0.75	1.1	YB90S-4/1.1
FIJ50-32-250	6.3	20	1.5	YB90L-4/1.5	2.2	YB100L-4/2.2	3	YB100L2-4/3.0
FIJ50-32-250A	5.9	17.5					2.2	YB100L1-4/2.2
FIJ50-32-250B							2.2	YB100L1-4/2.2
FIJ65-50-125	12.5	8	0.55	YB801-4/0.55	0.55	YB801-4/0.55	1.1	YB90S-4/1.1
FIJ65-50-125A	11.3	4.1	0.55		0.55	YB801-4/0.55	0.55	YB801-4/0.55
FIJ65-50-160	12.5	8			0.75	YB802-4/0.75	1.1	YB90S-4/1.1
FIJ65-50-160A	11.3	6.6	0.55		0.75		1.1	YB90S-4/1.1
FIJ65-40-200	12.5	12.5	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2
FIJ65-40-200A	11.3	10.3	0.75	YB802-4/0.75	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5
FIJ65-40-250	12.5	20	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0	4	YB112M-4/4.0
FIJ65-40-250A	11.7	17.5	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0
FIJ65-40-250B			4	YB112M-4/4.0	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5
FIJ65-40-315	12.5	32	4	YB112M-4/4.0	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5
FIJ65-40-315A	11.7	28	3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
FIJ65-40-315B			3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
FIJ80-65-125	25	5	0.75	YB802-4/0.75	0.75	YB802-4/0.75	1.1	YB90S-4/1.1
FIJ80-65-125A	22.6	4.1	0.55	YB801-4/0.55	0.55	YB801-4/0.55	0.75	YB802-4/0.75
FIJ80-65-160	25	8	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2
FIJ80-65-160A	22.7	6.6	0.75	YB802-4/0.75	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5
FIJ80-50-200	25	12.5	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0
FIJ80-50-200A	22.7	10.3	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2	2.2	YB100L1-4/2.2
FIJ80-50-250	25	20	3		4		5.5
FIJ80-50-250A	23.4	17.6	3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
FIJ80-50-250B			5.5	YB132S-4/5.5	7.5	YB132M-4/7.5	11	YB160M-4/11
FIJ80-50-315	25	32	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5	11	YB160M-4/11
FIJ80-50-315A	23.5	28.3	5.5
FIJ80-50-315B
FIJ100-80-125			2.2	YB100L1-4/2.2	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0
FIJ100-80-125A
FIJ100-80-160	50	8
FIJ100-80-160A	45.5	6.6	1.5	YB90L-4/1.5
FIJ100-65-200	50	12.5	3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
FIJ100-65-200A	45.5	10.3	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0	4	YB112M-4/4.0
FIJ100-65-250	50	20	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5	1.1	YB160M-4/11
FIJ100-65-250A	45.5	17.4	4	YB112M-4/4.0	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5

泵型号 Model	叶轮形式 impeller type	泵额定转速 n=2900r/min speed
		流量 M3/h Capacity	扬程 H m Head	相对密度＝1.00 relative density<1.0		相对密度＝1.00 relative density<1.35			相对密度＝1.00 relative density<1.86
				电机功率及型号 motor power or model
				Kw	-		Kw	-		Kw	-
FIJ100-65-250	-	100	80	37	YB200L2-2/37		45	YB225M-2/45		75	YB280S-2/75
FIJ100-65-250A	-	93.5	70	30	YB200L2-2/30		37	YB200L2-2/37		55	YB250M-2/55
FIJ100-65-250B	-	87.8	61.7	30	YB200L2-2/30		37	YB200L2-2/37		45	YB225M-2/45
FIJ100-65-315	-	100	125	75	YB280S-2/75		75	YB280S-2/75		110	YB135S-2/110
FIJ100-65-315A	-	93.5	109	55	YB250M-2/55		-			-	-
FIJ100-65-315B	-	88	97	45	YB225M-2/55		55	YB250M-2/55		75	YB280S-2/75
FIJ125-80-160	-	160	32	22	YB180M-2/22		30	YB200L1-2/30		37	YB200L2-2/37
FIJ125-80-200	-	160	50	37	YB200L2-2/37		45	YB225M-2/45		55	YB250M-2/55
FIJ125-80-250	-	160	80	55	YB250M-2/55		75	YB280S-2/75		90	YB280M-2/90
FIJ125-100-200	-	200	50	45	YB225M-2/45		55	YB250M-2/55		75	YB280S-2/75
FIJ125-100-200A	-	182	41.4	30	YB200L1-2/30		37	YB200L2-2/37		55	YB250M-2/55
FIJ125-100-250	-	200	80	75	YB280S-2/75		90	YB280M-2/90		110	-
FIJ125-100-250A	-	186.5	69.5	55	YB250M-2/55		75	YB280S-2/75		90	YB280M-2/90
FIJ125-100-250B	-	175.5	61.5	45	YB225M-2/45		75	YB280S-2/75		90	YB280M-2/90
FIJ125-100-315	-	200	125	110	YB315S-2/110		132	YB315M1-2/132		-	-

泵型号 Model	叶轮形式 impeller type	泵额定转速n=2900r/minspeed
		流量M3/h Capacity	扬程 H m Head	相对密度＝1.00 relative density<1.0		相对密度＝1.00 relative density<1.35			相对密度＝1.00 relative density<1.86
				电机功率及型号 motor power or model
				Kw			Kw		Kw
FIJ100-65-315		50	32	7.5	YB132M-4/7.5		11	YB160M-4/11	15	YB160L-4/15
FIJ100-65-315A		46.5	28	7.5	YB132M-4/7.5		11	YB160M-4/11	15	YB160L-4/15
FIJ100-65-315B				5.5	YB132S-4/5.5		7.5	YB132M-4/7.5	11	YB160M-4/11
FIJ125-100-200		100	12.5	5.5	YB132S-4/5.5		7.5	YB132M-4/7.5	11	YB160M-4/11
FIJ125-100-200A		91	10.3	4	YB112M-4/4.0		5.5	YB132S-4/5.5	7.5	YB132M-4/7.5
FIJ125-100-250		100	20	11	YB160M-4/11		11	YB160M-4/11	15	YB160L-4/15
FIJ125-100-250A		93	17.4	7.5	YB132M-4/7.5		11	YB160M-4/11	15	YB160L-4/15
FIJ125-100-250B				18.5	YB180L-4/18.5		22	YB180L-4/22	30	YB200L-4/30
FIJ125-100-315		100	32	15	YB160L-4/15		22	YB180L-4/22	30	YB200L4/30
FIJ125-100-400		100	50	32	YB200L-4/30		37	YB225S-4/37	55	YB250M-4/55
FIJ150-125-250		200	20	18.5	YB180L-4/18.5		22	YB180L-4/22	30	YB200L-4/30
FIJ150-125-250A		182	16.5	15	YB160L-4/15		15	YB160L-4/15	22	YB180L-4/22
FIJ150-125-315		200	32	30	YB200L-4/30		37	YB225S-4/37	45	YB225M-4/45
FIJ150-125-315A		182	25.5	22	YB180L-4/22		30	YB220L-4/30	37	YB225S-4/37
FIJ150-125-400		200	50	45	YB225M-4/45		55	YB250M-4/55	75	YB280S-4/75
FIJ150-125-400A		182	41	37	YB225S-4/37		45	YB225M-4/45	75	YB280S-4/75
FIJ200-150-250		400	20	37	YB225S-4/37		45	YB225M-4/45	75	YB280M-4/90
FIJ200-150-250A		360	16.2	30	YB200L-4/30		30	YB200L-4/30	45	YB225M-4/45
FIJ200-150-315		400	32	45	YB225M-4/45		75	YB280S-4/75	90	YB280S-4/75
FIJ200-150-315A		363	25.5	37	YB225S-4/37		45	YB225M-4/45	75	YB280S-4/75
FIJ200-150-400		400	50	75	YB280S-4/75		110	YB315S-4/110	132	YB315M1-4/132
FIJ200-150-400A		363	41	55	YB225M-4/45		75	YB280S-4/75	110	YB315S-4/110

注：
1.本网页的FIJ型悬臂式化工离心泵结构、结构图、尺寸、参数、流量、扬程、电机转速等主要性能参数，以及安装尺寸图、安装尺寸表均只适用于参考，详细CAD图、安装图、以及产品说明书请向赛泰水泵营销人员索取。
2.由于编辑水平有限，错误和不妥之处在所难免，真诚希望您批评指正。

FIJ型悬臂式化工离心泵相关产品

下一页：IH型不锈钢化工离心泵

返回至本系列目录：化工泵

上一页：IHF型氟塑料合金化工离心泵

FIJ型悬臂式化工离心泵

联系我们

销售热线
