Forged Steel Trunnion Mounted Ball Valves

Features

Size: 2"~24"
Class: 150~2500
Three Pieces Forged Steel Body
Trunnion Mounted Ball,
Full & Reduced Bore
Anti-Static Device
Blow-out Proof Stem
Double Block and Bleed
Fire Safe Design
Vent Valve, drain valve
Lifting Lugs & Supporting Feet (8"& Larger)

Materials

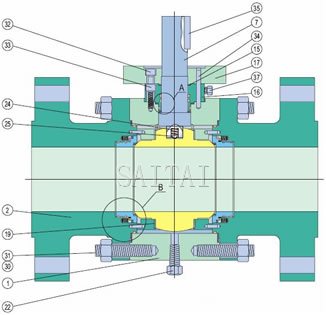

Materials of Forged Steel Trunnion Mounted Ball Valves

No.	Part	Material
1	Body	ASTM A216, ASTM A351-CF8M, ASTM A352 -LCC
2	Vent Valve	Carbon Steel, Stainless Steel
3	Ball	ASTM A105/ENP, ASTM A182-F316
4	*O-Ring	NBR / VITON
5	Seat Ring	ASTM A105/ENP, ASTM A182-F316
6	Seat Insert	PTFE / Nylon
7	Seat Spring	Inconel X-750
8	Steel Ball	Stainless Steel
9	Antistatic Spring	Stainless Steel
10	Thrust Washer	PTFE
11	Bearing	Carbon Steel + PTFE, 316SS + PTFE
12	Seat Injection	Carbon Steel, Stainless Steel
13	Gland Flange	ASTM A105, ASTM A182-F316, ASTM A350-LF2
14	*Gland Gasket	304SS+Graphite, 316SS+Graphite
15	Stem	ASTM A105/ENP, ASTM A182-F316
16	Key	Carbon Steel, Stainless Steel
17	Top Flange	ASTM A216-WCB, ASTM A351-CF8M, ASTM A352-LCC
18	Screw	Carbon Steel, Stainless Steel
19	*Stem Fire safe Packing	Flexible Graphite
20	Stem Injection	Carbon Steel, Stainless Steel
21	*O-Ring	NBR / VITON
22	*Body Gasket	304SS+Graphite
23	*O-Ring	NBR / VITON
24	Adapter	ASTM A216-WCB, ASTM A351-CF8M, ASTM A352-LCC
25	Body Nut	ASTM A194-2H, ASTM A194-8, ASTM A194-7M
26	Body Stud	ASTM A193-B7, ASTM A193-B8, ASTM A320-L7M
27	Bearing	Carbon Steel+ PTFE, 316SS+PTFE
28	Drain	Carbon Steel, Stainless Steel
29	Trunnion	ASTM A105/ENP, ASTM A182-F316, ASTM A350-LF2/ENP
30	*Trunnion Gasket	304SS+Graphite, 316SS+Graphite
31	Screw	Carbon Steel, Stainless Steel
32	Seat Follower	ASTM A105/ENP, ASTM A182-F316
33	*Seat Fire safe Packing	Flexible Graphite

ASME Pressure Class 150 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Full Bore-Dimensions and Weights

Dimensions of Forged Steel Trunnion Mounted Ball Valves

Weights of Forged Steel Trunnion Mounted Ball Valves

Size	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	Kg
2	51	170	180	138	265	30
3	76	203	190	150	285	60
4	102	229	212	170	285	92
6	152	394	277	183	*400	190
8	203	457	301	216	*400	345
10	254	533	359	260	*500	495
12	305	610	419	287	*600	705
14	337	686	460	338	*600	859
16	387	762	494	375	*600	1020
18	438	864	521	402	*600	1440
20	489	914	656	427	*600	1918
22	540	991	733	480	*600	2352
24	591	1067	795	518	*700	2803
26	635	1143	870	535	*800	3200
28	686	1245	935	542	*800	4045
30	737	1295	1010	605	*800	4820
32	781	1372	1060	650	*800	5490
34	832	1473	1077	650	*800	6704
36	876	1524	1115	700	*800	7615
40	978	1727	1400	865	*800	10271

ASME Pressure Class 150 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Reduce Bore-Dimensions and Weights

Size	d	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	mm	Kg
2*1-1/2	38	51	178	140	110	250	26
3*2	51	76	203	180	130	265	34
4*3	76	102	229	190	150	285	62
6*4	102	152	394	212	170	285	102
8*6	152	203	457	277	183	*400	225
10*8	203	254	533	301	216	*400	373
12*10	254	305	610	359	260	*500	533
14*12	305	337	686	419	287	*600	730
16*14	337	387	762	460	338	*600	790
18*16	387	438	864	494	375	*600	1095
20*18	438	489	914	521	402	*600	1152
22*18	438	540	991	521	402	*600	2343
24*20	489	591	1067	656	427	*600	2060
26*22	540	635	1143	733	480	*600	2215
28*24	591	686	1245	795	518	*700	2700
30*24	591	737	1295	795	518	*700	2918
32*26	635	781	1372	870	535	*800	4005
34*28	686	832	1473	935	542	*800	4445
36*30	737	876	1524	1010	605	*800	4995
40*34	832	978	1727	1077	650	*800	8200

ASME Pressure Class 300 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Full Bore-Dimensions and Weights

Size	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	Kg
2	51	216	180	130	265	31
3	76	283	190	150	285	69
4	102	305	212	170	400	11
6	152	403	277	183	*400	211
8	203	502	308	217	*500	376
10	254	568	381	265	*600	540
12	305	648	429	307	*600	763
14	337	762	460	338	*600	900
16	387	838	581	375	*600	1300
18	438	914	674	414	*700	1715
20	489	991	713	450	*700	2090
22	540	1092	780	492	*700	2220
24	591	1143	850	531	*760	2890
28	686	1346	958	556	*800	4575
30	737	1397	1035	620	*800	5590
32	781	1524	1087	666	*800	6240
34	832	1626	1104	666	*800	7370
36	876	1727	1143	718	*800	8435
40	978	1930	1435	887	*800	11200

ASME Pressure Class 300 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Reduce Bore-Dimensions and Weights

Size	d	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	mm	Kg
2*1-1/2	38	51	216	140	110	250	30
3*2	51	76	283	180	130	265	37
4*3	76	102	305	190	150	285	74
6*4	102	152	403	212	170	400	142
8*6	152	203	502	277	183	*400	253
10*8	203	254	568	308	217	*500	410
12*10	254	305	648	381	265	*600	580
14*12	305	337	762	429	307	*600	830
16*14	337	387	838	460	338	*600	970
18*16	387	438	914	581	375	*600	1530
20*18	438	489	991	674	414	*700	1830
22*18	438	540	1092	674	414	*700	2010
24*20	489	591	1143	713	450	*700	2220
28*24	591	686	1346	850	531	*760	3200
30*24	591	737	1397	850	531	*760	3200
34*28	686	832	1626	958	556	*800	4845
36*30	737	876	1727	1035	620	*800	6100
40*34	832	978	1930	1104	666	*800	8200

ASME Pressure Class 600 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Full Bore-Dimensions and Weights

Size	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	Kg
2	51	292	172	130	285	45
3	76	356	205	150	400	80
4	102	432	308	170	755	150
6	152	559	274	185	*500	248
8	203	660	342	223	*600	438
10	254	787	393	270	*600	701
12	305	838	522	310	*600	925
14	337	889	551	340	*600	1230
16	387	991	637	378	*700	1535
18	438	1092	683	418	*760	2135
20	489	1194	719	451	*760	2640
22	540	1295	754	492	*800	3370
24	591	1397	823	539	*800	3960
28	686	1549	958	556	*800	6060
30	737	1651	1035	620	*800	6690
32	781	1778	1087	666	*800	7825
34	832	1930	1104	666	*800	8460
36	876	2083	1143	718	*800	10650
40	978	2337	1435	887	*800	14700

ASME Pressure Class 600 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Reduce Bore-Dimensions and Weights

Size	d	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	mm	Kg
2*1-1/2	38	51	292	164	110	265	40
3*2	51	76	356	172	130	285	54
4*3	76	102	432	205	150	400	99
6*4	102	152	559	308	170	755	212
8*6	152	203	660	274	185	*500	304
10*8	203	254	787	342	223	*600	510
12*10	254	305	838	393	270	*600	902
14*12	305	337	889	522	310	*600	1090
16*14	337	387	991	551	340	*600	1310
18*16	387	438	1092	637	378	*700	1640
20*18	438	489	1194	683	418	*760	2270
22*18	438	540	1295	683	418	*760	2430
24*20	489	591	1397	719	451	*760	3440
28*24	591	686	1549	823	539	*800	4250
30*24	591	737	1651	823	539	*800	4730
34*28	686	832	1930	958	556	*800	7200
36*30	737	876	2083	1035	620	*800	8600
40*34	832	978	2337	1104	666	*800	10020

ASME Pressure Class 900 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Full Bore-Dimensions and Weights

Size	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	Kg
2	51	368	193	136	400	52
3	76	381	302	158	755	87
4	102	457	332	180	*400	160
6	152	610	320	187	*600	385
8	203	737	365	226	*600	560
10	254	838	495	280	*600	820
12	305	965	600	329	*700	1125
14	324	1029	625	390	*760	1610
16	375	1130	675	407	*760	2010
18	425	1219	715	526	*760	2810
20	473	1321	750	600	*760	3460
22	524	1422	780	640	*800	4410
24	572	1549	800	690	*800	5497
28	667	1753	987	573	*800	10202
30	714	1880	1066	638	*800	11442
32	762	2032	1120	686	*800	12102
34	810	2159	1137	688	*800	17462
36	857	2285	1177	739	*800	20154

ASME Pressure Class 900 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Reduce Bore-Dimensions and Weights

Size	d	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	mm	Kg
2*1-1/2	38	51	368	175	110	285	45
3*2	51	76	381	193	136	400	56
4*3	76	102	457	302	158	755	94
6*4	102	152	610	332	180	*400	226
8*6	152	203	737	320	187	*600	480
10*8	203	254	838	365	226	*600	650
12*10	254	305	965	495	280	*600	868
14*12	305	324	1029	600	329	*700	1310
16*14	324	375	1130	625	390	*760	1830
18*16	375	425	1219	675	407	*760	2205
20*18	425	473	1321	715	526	*760	3140
22*18	425	524	1422	715	526	*760	3288
24*20	473	572	1549	750	600	*760	3810
28*24	572	667	1753	800	690	*800	7580
30*24	572	714	1880	945	547	*800	7981
34*28	667	810	2159	987	573	*800	11202
36*30	714	857	2286	1066	638	*800	15653

ASME Pressure Class 1500 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Full Bore-Dimensions and Weights

Size	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	Kg
2	51	368	193	150	400	60
3	76	470	270	168	1135	115
4	102	546	275	176	*500	194
6	146	705	325	203	*600	580
8	194	832	501	248	*700	752
10	241	991	536	297	*700	1195
12	289	1130	614	357	*760	1970
14	318	1257	662	383	*760	2250
16	362	1384	700	434	*760	2760
18	407	1537	750	506	*760	3646
20	457	1664	864	586	*800	4497
22	495	1816	925	631	*800	5731
24	534	2045	1065	675	*800	7151

ASME Pressure Class 1500 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Reduce Bore-Dimensions and Weights

Size	d	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	mm	Kg
2*1-1/2	38	51	368	183	110	285	56
3*2	51	76	470	193	150	400	82
4*3	76	102	546	270	168	1135	150
6*4	102	146	705	275	176	*500	295
8*6	146	194	832	325	203	*600	690
10*8	194	241	991	501	248	*700	930
12*10	241	289	1130	536	297	*700	1340
14*12	289	318	1257	614	357	*760	2070
16*14	318	362	1384	662	383	*760	2470
18*16	362	407	1537	700	434	*760	2950
20*18	407	457	1664	750	506	*760	3350
22*18	407	495	1816	750	506	*800	3600
24*20	457	534	2045	864	586	*800	5850

ASME Pressure Class 2500 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Full Bore-Dimensions and Weights

Size	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	Kg
2	44	451	230	121	815	90
3	64	578	284	146	*500	200
4	89	673	303	164	*500	385
6	133	914	394	220	*600	778
8	181	1022	488	312	*760	1352
10	225	1270	600	425	*760	2137
12	267	1422	872	629	*760	3267

ASME Pressure Class 2500 Lb-Three-Piece(3PC)
Flanged Ends-Forged-Trunnion Mounted-Reduce Bore-Dimensions and Weights

Size	d	D	L	H1	H2	W	Weight
in	mm	mm	mm	mm	mm	mm	Kg
2*1-1/2	38	44	454	170	100	400	80
3*2	44	64	584	230	121	815	160
4*3	64	89	683	284	146	*500	320
6*4	89	133	927	303	164	*500	640
8*6	133	181	1038	360	365	*600	1170
10*8	181	225	1292	420	410	*760	1919
12*10	225	267	1445	509	470	*760	2972
