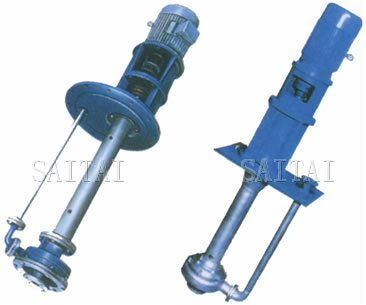

Corrosive Vertical Submerged Pump

I Summary For Corrosive Vertical Submerged Pump

FY series corrosive vertical submerged pump is one of single-stage single-suction long-shaft submerged centrifugal pumps. Its marks, performance points and dimension of flange are designed according to International Standard of ISO2858.
Its technical conditions are designed according to ISO5199. It has little volume, high efficiency, power saving, operating liability compared with former FY series corrosive vertical submerged pump.
ENINE yielding FY series corrosive vertical submerged pump can not pump corrosive medium which has solid particles and wearable materials. The medium temperature varies from 0℃ to 105℃. Heat preservation closed cover and low-temperature wearable guide bearing are used when the temperature of medium is from -20℃to 0℃, cooling closed cover and high-temperature wearable guide bearing are used when the temperature of medium is from 105℃ to 180℃. This condition must be stated when ordering. If medium has little solid particle, sliding bearing should be outer-lubricated bearing, which shall be stated clearly when ordering.(water and other allowed medium whose outer pressure is over 0.2MPa) Operating pressure is designed at 1.6MPa.
Performance range: Capacity: 1.6-2600M³/h, head: 5-132m
The materials contacting with liquid can be selected as cast iron(H), cast steel, 1Cr18Ni9Ti(B), 1Cr18Ni12Mo2Ti(M), 304,304L,316,316L,904,Lewmet Alloy,20# according to different medium.

Perating Performance Table For Corrosive Vertical Submerged Pump

Model	Impeller type	speed n=2900r/min
		capacity Q M³/h	head H m	relative density<1.0		relative density<1.35		relative density<1.86
				Power	Motor model	Power	Motor model	Power	Motor model
				kw	Motor model	kw	Motor model	kw	Motor model
25FY-20		3.2	20	1.1	Y802-2	1.5	Y90S-2	2.2	Y90L-2
25FY-20	A	2.8	16	1.1	Y802-2	1.5	Y90S-2	2.2	Y90L-2
25FY-32		2.8	32	3	Y100L-2	3	Y100L-2	4	Y112M-2
25FY-32	A	2.8	26	3	Y100L-2	3	Y100L-2	4	Y112M-2
25FY-50		3.2	50	5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2
25FY-50	A	2.8	41	5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2
25FY-80		3.2	80	7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2
	A	3	70	5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2
	B	2.8	62	4	Y112M-2	5.5	Y132S1-2	11	Y160M1-2
40FY-20		6.3	20	1.5	Y90S-2	2.2	Y90L-2	3	Y100L-2
40FY-20	A	5.5	16	1.5	Y90S-2	2.2	Y90L-2	3	Y100L-2
40FY-32		6.3	32	3	Y100L-2	3	Y100L-2	4	Y112M-2
40FY-32	A	5.5	26	3	Y100L-2	3	Y100L-2	4	Y112M-2
40FY-50		6.3	50	5.5	Y132S1-2	7.5	Y132S-2	11	Y160M1-2
40FY-50	A	5.5	41	5.5	Y132S1-2	7.5	Y132S-2	11	Y160M1-2
40FY-80		6.3	80	7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2
	A	5.9	70	5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2
	B	5.6	62	5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2
50FY-20		12.5	20	1.5	Y90S-2	2.2	Y90L-2	3	Y100L-2
50FY-20	A	11.3	16.4	1.5	Y90S-2	2.2	Y90L-2	3	Y100L-2
50FY-32		12.5	32	3	Y100L-2	4	Y112M-2	5.5	Y132S1-2
50FY-32	A	11.3	26.4	2.2	Y90L-2	3	Y100L-2	4	Y112M-2
50FY-50		12.5	50	5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2
50FY-50	A	11.3	41	4	Y112M-2	5.5	Y132S1-2	7.5	Y132S2-2
50FY-80		12.5	80	11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2
	A	11.7	70	11	Y160M1-2	11	Y160M1-2	15	Y160M2-2
	B	11	62	7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2
65FY-20		25	20	3	Y100L-2	4	Y112M-2	5.5	Y132S1-2
65FY-20	A	22.7	16.5	2.2	Y90L-2	3	Y100L-2	4	Y112M-2
65FY-32		25	32	5.5	Y132S1-2	5.5	Y132S1-2	7.5	Y132S2-2
65FY-32	A	22.7	26.5	4	Y112M-2	4	Y112M-2	5.5	Y132S1-2
65FY-50	A	25	50	11	Y160M1-2	11	Y160M1-2	15	Y160M2-2
65FY-50	A	22.7	41	7.5	Y132S2-2	7.5	Y132S2-2	11	Y160M1-2
65FY-80		25	80	15	Y160M2-2	18.5	Y160L-2	22	Y180M-2
	A	23.4	74.8	15	Y160M2-2	15	Y160M2-2	22	Y180M-2
	B	22	61.8	11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2
80FY-20		50	20	5.5	Y132S1-2	5.5	Y132S1-2	7.5	Y132S2-2
80FY-20	A	45.3	16.5	5.5	Y132S1-2	5.5	Y132S1-2	7.5	Y132S2-2
80FY-32		50	32	7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2
80FY-32	A	45.4	26.4	7.5	Y132S2-2	7.5	Y132S2-2	11	Y160M1-2
80FY-50		50	50	15	Y160M2-2	15	Y160M2-2	22	Y180M-2
80FY-50	A	45.3	41	11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2
80FY-80	A	50	80	22	Y180M-2	30	Y200L1-2	45	Y225M-2
	A	46.8	70.5	18.5	Y160L-2	22	Y180M-2	30	Y200L1-2
	B	44	62.2	15	Y160M2-2	22	Y180M-2	30	Y200L1-2
100FY-20		100	20	11	Y160M1-2	11	Y160M1-2	15	Y160M2-2
100FY-20	A	91.8	16.8	7.5	Y132S2-2	11	Y160M1-2	11	Y160M1-2
100FY-32		100	32	15	Y160M2-2	18.5	Y160L-2	22	Y180M-2
100FY-32	A	91	26.5	11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2
100FY-50		100	50	22	Y180M-2	30	Y200L1-2	37	Y200L2-2
100FY-50	A	91	41.5	18.5	Y160L-2	22	Y180M-2	30	Y200L1-2
100FY-80		100	80	45	Y225L2-2	45	Y225M-2	75	Y280S-2
	A	93.5	70	37	Y250L2-2	45	Y225M-2	55	Y250M-2
	B	87.8	61.7	30	Y250L2-2	37	Y250L2-2	45	Y225M-2
100FY-20		100	20	11	Y160M1-2	11	Y160M1-2	15	Y160M2-2
100FY-20	A	91.8	16.8	7.5	Y132S2-2	11	Y160M1-2	11	Y160M1-2
100FY-32		100	32	15	Y160M2-2	18.5	Y160L-2	22	Y180M-2
100FY-32	A	91	26.5	11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2
100FY-50		100	50	22	Y180M-2	30	Y200L1-2	37	Y200L2-2
100FY-50	A	91	41.5	18.5	Y160L-2	22	Y180M-2	30	Y200L1-2
100FY-80		100	80	45	Y225L2-2	45	Y225M-2	75	Y280S-2
	A	93.5	70	37	Y250L2-2	45	Y225M-2	55	Y250M-2
	B	87.8	61.7	30	Y250L2-2	37	Y250L2-2	45	Y225M-2

Model	Impeller type	speed n=14500r/min
		capacity Q M³/h	head H m	relative density<1.0		relative density<1.35		relative density<1.86
				Powerkw	Motormodel	Powerkw	Motormodel	Powerkw	Motormodel
				Powerkw	Motormodel	Powerkw	Motormodel	Powerkw	Motormodel
25FY-20		1.6	5	0.75	Y802-4	0.75	Y802-4	1.1	Y90S-4
25FY-20	A	1.4	4	0.75	Y802-4	0.75	Y802-4	1.1	Y90S-4
25FY-32		1.6	8	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
25FY-32	A	1.4	6.5	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
25FY-50		1.6	12.5	1.1	Y90S-4	1.5	Y90L-4	2.2	Y100L1-4
25FY-50	A	1.4	10						Y90S-4
25FY-80		1.6	20
	A	1.5	17
	B	1.4	15
40FY-20		3.2	5	0.75	Y802-4	0.75	Y802-4	1.1	Y90S-4
40FY-20	A	2.8	4	0.75	Y802-4	0.75	Y802-4	1.1	Y90S-4
40FY-32		3.2	8	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
40FY-32	A	2.8	6.5	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
40FY-50		3.2	12.5	1.1	Y90S-4	1.5	Y90L-4	2.2	Y100L1-4
40FY-50	A	2.8	10	1.1	Y90S-4	1.5	Y90L-4	2.2	Y100L1-4
40FY-80		3.2	20	1.5	Y90L-4	2.2	Y100L1-4	3	Y100L2-4
	A	2.9	17
	B	2.8	15
50FY-20		6.3	5	0.75	Y802-4	0.75	Y802-4	1.1	Y90S-4
	A	5.7	4.1
	A	5.7	6.6
50FY-50		6.3	12.5	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
50FY-50	A	5.7	10.3	1.1	Y90S-4	0.75	Y802-4	1.1	Y90S-4
50FY-80		6.3	20	1.5	Y90L-4	2.2	Y80L-4	3	Y100L2-4
	A	5.7	17.5					2.2	Y100L1-4
	B	5.7	17.5					2.2	Y100L1-4
65FY-20		12.5	5	0.75	Y802-4	0.75	Y802-4	1.1	Y90S-4
65FY-20	A	11.3	4.1	0.75				0.75	Y802-4
65FY-32		12.5	8	0.75				1.1	Y90S-4
65FY-32	A	11.3	6.6	0.75				1.1	Y90S-4
65FY-50	A	12.5	12.5	1.1	Y90S-4	1.5	Y90L-4	2.2	Y100L1-4
65FY-50	A	11.3	103	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
65FY-80		12.5	20	2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	A	11.7	17.5			2.2	Y100L1-4	3	Y100L2-4
	B	11.7	17.5			2.2	Y100L1-4	3	Y100L2-4
80FY-20		25	5	0.75	Y802-4	0.75	Y802-4	1.1	Y90S-4
80FY-20	A	22.6	4.1	0.75	Y802-4	0.75	Y802-4	0.75	Y802-4
80FY-32		25	8	1.5	Y90L-4	1.5	Y90L-4	2.2	Y100L1-4
80FY-32	A	22.7	6.6	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
80FY-50		25	12.5	2.2	Y100L1-4	2.2	Y100L1-4	3	Y100L2-4
80FY-50	A	22.7	10.3	1.5	Y90L-4	2.2	Y100L1-4	2.2	Y100L1-4
80FY-80	A	25	20	3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	A	23.4	17.6	3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	B	23.4	17.6
100FY-32		50	8
100FY-32	A	45.5	6.6	1.5	Y90L-4	2.2	Y100L1-4	3	Y100L2-4
100FY-50		50	12.5	4	Y112M-4	4	Y112M-4	5.5	Y132S-4
100FY-50	A	45.5	10.3	3	Y100L2-4	3	Y100L2-4	4	Y112M-4
100FY-80		50	20	5.5	Y132S-4	7.5	Y132M-4	11	Y160M-4
	A	45.5	17.4	4	Y112M-4	5.5	Y132S-4	7.5	Y132M-4
	B	43	15	4	Y112M-4	5.5	Y132S-4	7.5	Y132M-4
125FY-12.5		100	12.5	5.5	Y132S-4	7.5	Y132M-4	11	Y160M-4
125FY-12.5	A	91	10.3	5.5	Y132S-4	5.5	Y132S-4	7.5	Y132M-4
125FY-20		100	20	11	Y160M-4
125FY-20	A	91	16.5	7.5	Y132M-4	11	Y160M-4	15	Y160L-4
125FY-32		100	32	18.5	Y180M-4	22	Y180L-4	30	Y200L-4
125FY-32	A	91	25.5	15	Y160L-4	18.5	Y180M-4	30	Y200L-4
125FY-50		100	50			37	Y225S-4	55	Y250M-4
125FY-50	A	91	41	30	Y200L-4	30	Y200L-4	45	Y225M-4
150FY-20		200	20	18.5	Y180M-4	22	Y180L-4	30	Y200L-4
150FY-20	A	182	16.5	15	Y160L-4	18.5	Y180M-4	30	Y200L-4
