Oversized Resilient Seated Gate Valves

Summary

Oversized gate valve is made of high quality ductile cast iron or cast steel with high strength, light weight and precise dimensions. The disc is replaceable. And the valve is gear operated and can open or close the valve easily by one man, at the same time it can be with opening indicator according to the client's requirements, or be with electric or pneumatic actuator. It's sealing and anti-rust function is very good. And it is reliable with long life. It can be installed vertically or horizontally and used widely in the system such as feeding and draining, sewage treatment, construction, mining, metallurgy, electric power plant etc.

Technical Parameters

Nominal pressure: 1.0-2.5MPa
Working temp.:0-120°C
Flanged end:GB/T17241.6 GB9113,ASME 16.5 etc.
Nominal diameter: 50-400mm
Service: water, oils, gas etc.
Inspection and test: GB 13927 API 598

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park

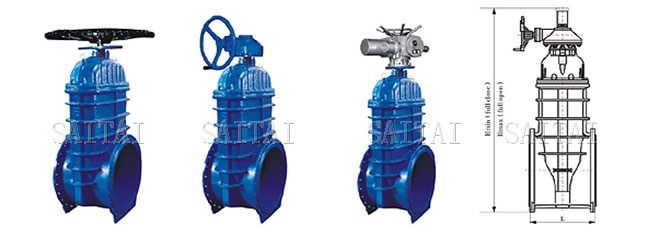

Oversized resilient seated gate valves

Materials

Serial no.	part	material
1	Body	Grey cast iron, ductile cast iron, cast steel
2	Disc	Ductile cast iron packed with rubber or EDPM outside
3	Bolt	Carbonized treatment
4	Gasket	Buna-N rubber or EPDM
5	Cover	Grey cast iron, ductile cast iron, cast steel
6	Stem	Stainless steel
7	O-ring	Buna-N rubber
8	Thrust bearing	Gun metals
9	Bolt	Carbon steel or alloy
10	Gland	ductile cast iron, cast steel
11	Dust proof gasket	Buna-N rubber
12	Hand wheel	Ductile iron

Dimensions

DN	500	600	700	800	900	1000	1200
L	457	508	660	720	780	840	960
H(min)(full close)	1480	1665	2200	2800	2800	3000	3000
H(max)(full open)	1650	1900	2350	2950	2950	3150	3150
H(ELECTRIC)	the electric actuator according to the client's requirements
