Stainless Teel Diaphragm Pump Performance Summary
QBY Stainless steel diaphragm pump not only can exhaust the flow liquid,but also can convey some uneasy flowed medium,with the merits of self-pumping pump,diving pump,shield pump,slurry pump and impurity pump etc:
Stainless Teel Diaphragm Pump Working Principle
There installs each diaphragm in both aligned working cavities(A) &(B),which can be connected tonether with a central coupling lever.The compression air enters the air distribution valve from the air entrance of the pump,draw the compression air into one cavity through the air distibution mechanism,push out the diaphragm movement in the cavity.The gas in another cavity will be drained.Once reaching the stroke terminal,the air distribution mechanism will automatically draw the compression air into another working cavity,push out the diaphragm to move towards the opposite direction,so as to let the both diaphragms continuously reciprocate motion in synchronism. The compression air enters the air distribution valve from(E)shown as the diagram,let the diaphragm piece move towards the right direction.And the suction force in(A)chamber lets the medium flow into from(C)entrance,push out the ball valve(2)to enter(A)chamber,the ball valve(4)will be locked due to the suction force;The medium in(B)chamber will be pressed,push out the ball valve(3)to flow out from the exit(D).Meanwhile,let the ball valve(1)close,prevent backflow.Such movement in circles will let the medium uninterruptedly suck from(C)entrance and drain feom(D)exit.
Stainless Teel Diaphragm Pump Main Usage

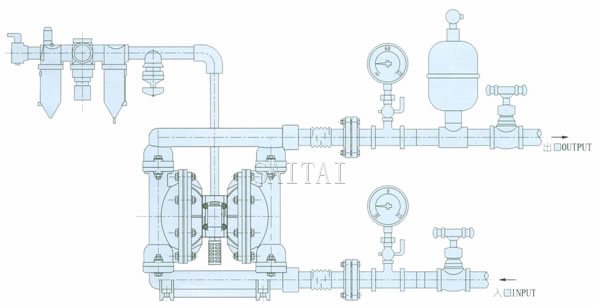

Stainless Teel Diaphragm Pump System Connection Schematic Diagram
Stainless Steel Diaphragm Pump Drawing Of Setting Data
Stainless Steel Diaphragm Pump Table Of Setting Data
Model | A | B | C | D | E | H1 | H2 | H3 | H | Screw | Flange | |||||
NPT/RC | D1 | D2 | D3 | D | n | g | ||||||||||
QBY-10 | 130 | 50 | 220 | 145 | 10 | 39 | 195 | 10 | 270 | 1/2 | - | - | - | - | - | - |
QBY-15 | 130 | 50 | 220 | 145 | 10 | 39 | 195 | 10 | 270 | 1/2 | - | - | - | - | - | - |
QBY-25 | 245 | 160 | 360 | 250 | 12 | 63 | 360 | 36 | 470 | 2 | - | - | - | - | - | - |
QBY-40 | 245 | 160 | 360 | 250 | 12 | 63 | 360 | 35 | 470 | 11/2 11/4 | - | - | - | - | - | - |
QBY-50 | 335 | 220 | 540 | 345 | 16 | 88 | - | 25 | 720 | - | 90 | 50 | 110 | 130-130 | 4 | 14 |
QBY-65 | 335 | 220 | 540 | 345 | 16 | 88 | - | 25 | 720 | - | 110 | 65 | 130 | 130-130 | 4 | 14 |
QBY-80 | 425 | 250 | 570 | 450 | 18 | 110 | - | 32 | 900 | - | 125 | 80 | 150 | 160-160 | 4 | 18 |
QBY-100 | 425 | 250 | 570 | 450 | 18 | 110 | - | 32 | 900 | - | 145 | 100 | 170 | 160-160 | 4 | 18 |

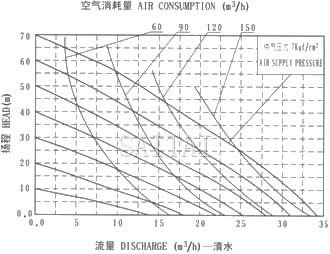

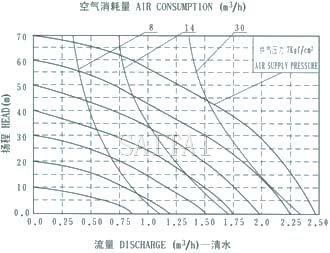

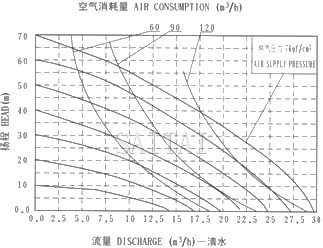

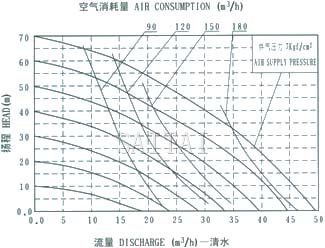

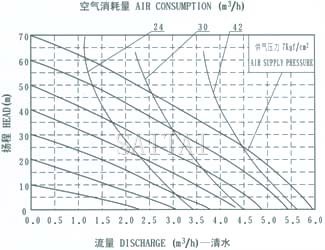

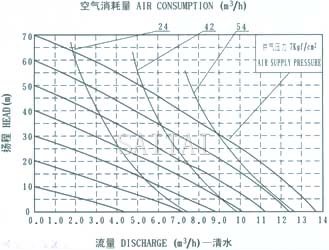

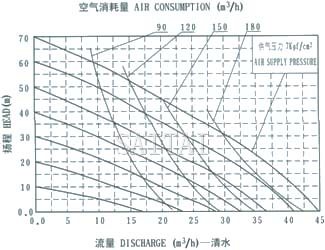

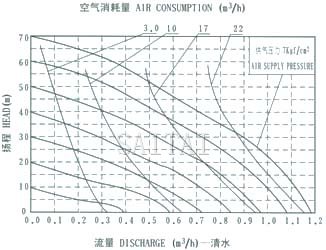

Stainless Steel Diaphragm Pump Preformance Parameter
Model | Discharge (m3/h) |
Head (m) |
Exit pressure (kgf/cm2) |
Sucked Lift (m) |
Max grain Dia (mm) |
Max pressure (kgf/cm2) |
Max air consumption (m3/min) |
Materials | ||||
ZL104 | 1Cr18 Ni9Ti |
HT200 | Enhanced Polypr opyene |
F4 F46 (EFP)PO |
||||||||
QBY-10 | 0~0.8 | 0~50 | 6 | 5 | 1 | 7 | 0.3 | * | * | * | * | / |
QBY-15 | 0~1 | 0~50 | 6 | 5 | 1 | 7 | 0.3 | * | * | * | * | / |
QBY-25 | 0~2.4 | 0~50 | 6 | 7 | 2.5 | 7 | 0.6 | * | * | * | * | |
QBY-40 | 0~8 | 0~50 | 6 | 7 | 4.5 | 7 | 0.6 | * | * | * | * | * |
QBY-50 | 0~12 | 0~50 | 6 | 7 | 8 | 7 | 0.9 | * | * | * | / | * |
QBY-65 | 0~16 | 0~50 | 6 | 7 | 8 | 7 | 0.9 | * | * | * | / | * |
QBY-80 | 0~24 | 0~50 | 6 | 7 | 10 | 7 | 1.5 | * | * | * | / | / |
QBY-100 | 0~30 | 0~50 | 6 | 7 | 10 | 7 | 1.5 | * | * | * | / | / |
