API Gauge Valves

API Gauge Valves
API Gauge Valves

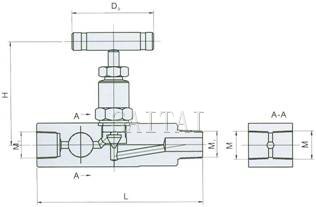

Structure of API Gauge Valves
Structure of API Gauge Valves

Specifications

Design: ANSI B16.34-1996,
Test: APISID598-1996.
Materials:
Carbon steel: ASTM A105-1991,
Stainless steel: ANSI B276-1992.
Female NPT to Male NPT

Technical Data

TESTITEM PRESSURE VALVE
Nominal Pressure 6000PSI
Shell Test 6000PSI
Test 6000PSI
Air Pressure Test 24
Suitable Temperatue ≤250℃
Suitable Medium Water,Steam,Oilgoods

Materials

TYPE BODY TIE-IN VALVE HANDLE SCREW CAP PACKING
SS-5PDF8-M8 20# 20# 2Cr13 20# Leslble graphite
SS-5PDF8-M8 304SS 304SS 304SS 304SS Leslble graphite
SS-5PDF8-M8 316SS 316SS 316SS 316SS Leslble graphite

Dimensions(mm)

SPECIF ICATION Do L H M M1
DN6 60 120 82 R1/2 NPT1/2
