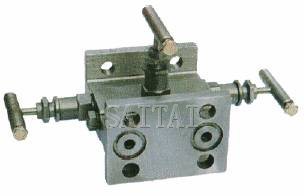

1151T-type Three-Manifold Valve

1151T-type Three-Manifold Valve
1151T-type Three-Manifold Valve
Structure of 1151T-type Three-Manifold Valve
Structure of 1151T-type Three-Manifold Valve

1151T-type three-manifold valve chief property and specification

Type Nominal Pressure PS(MPa)Test pressure
Working Pressure
(°C)
Working Temperature
Applicable medium
Shell Seal Seal
1151-40 4.0 6.0 4.4 0.6 4.0 P=540°C Petroleum gas Water,Asic,Steam,
Oil etc.
1151-320P 32.0 48.0 35.2 0.6 32.0 C=425°C

1151T-type three-manifold valve main external and connecting dimensions(mm)

DN(mm) Dimensions (Kg)
Weight
Nominal diameter Do D1 H L L1 d
3-6 60 97 220 87 54 3-6 2.2
