Three Piece (3-PC), High Pressure, Instrumentation Ball Valves

Pressure: PN 6.4 MPa
Material: 304SS 316SS 20#,
Three Piece (3-PC), Ball
Threaded, Female NPT and Welded Ends

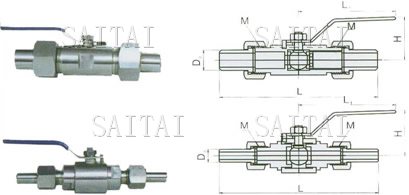

PN 6.4 MPa- Welded Ends-Dimensions:

PN 6.4 MPa- Welded Ends-Dimensions
PN 6.4 MPa- Welded Ends-Dimensions
SPECIFICATION L Do L1 H
DN6 115 Φ12 110 44
DN10 120 Φ14 110 44
DN15 125 Φ20 110 44
DN20 128 Φ28 110 50

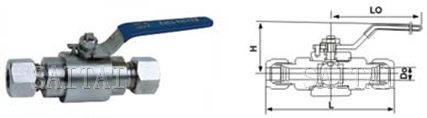

PN 6.4 MPa-Threaded Ends-Dimensions:

PN 6.4 MPa-Threaded Ends-Dimensions
PN 6.4 MPa-Threaded Ends-Dimensions

SPECIFICATION
Do L L1 H NOMINAL
PRESSURE
DN3 Φ6 86 110 44 =6.4MPa
DN6 Φ8 90 110 44 =6.4MPa
DN10 Φ14 95 110 44 =6.4MPa

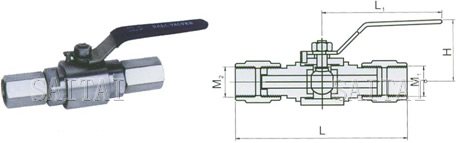

PN 6.4 MPa- Female NPT Ends-Dimensions:

PN 6.4 MPa- Female NPT Ends-Dimensions
PN 6.4 MPa- Female NPT Ends-Dimensions
NO M1 M2 L L1 H
1 M20×1.5 M20×1.5left 145 110 44
2 G1/2 M20×1.5left 145 110 44
