Summary
A compact but extremely sturdy design for high pressure-temperature service.
Stainless steel A182 F316(L) wedge ensures low friction and long service life.
For Class 1500 valves and for steam service.
Packing rings are precompressed to provide a high integrity seal.
For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value and the body
bonnet joint is strength-welded, offering double protection against leakage. (Body / bonnet threads and
strength-weld).
Parameters
ASME Pressure Classes: 150, 300, 600, 800, 900, 1500, 2500 Lb
Sizes: 3/8, 1/2, 3/4, 1-1/4, 1-1/2, 2" ( DN 10, 15, 20, 25, 32, 40, 50 mm )
Ends: Welded, threaded and flanged.
Materials: Stainless steel, alloy steel, carbon steel.
Materials

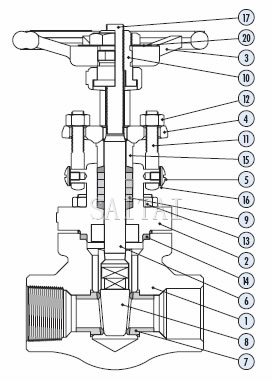

| No. | Part | Material |
| 1 | Body | A105,A182 F22, A182 F304(L),A182 F316(L) |
| 2 | Bonnet | A105,A182 F22,A182 F304(L),A182 F316(L) |
| 3 | Handwheel | A194 2H,A194 4,A194 8,A194 8M |
| 4 | Gland Flange | Forged steel |
| 5 | Eyebolt Screws | A276 420,A276 304 |
| 6 | Stem | A182 F6,A182 F304,A182 F304(L),A182 F316(L) |
| 7 | Seats | A276 420,A276 304,A276 304(L),A276 316(L) |
| 8 | Wedge | A276 430&410,A182 F304,A182 F304(L),A182 F316(L) |
| 9 | Packing | A105,A182 F11,A182 F304(L),A182 F316(L) |
| 10 | Yoke Nut | A276 420 |
| 11 | Eyebolts | A193 B7,A193 B16,A193 B8,A193 B8M |
| 12 | Eyebolt Nuts | A194 2H,A194 4,A194 8,A194 8M |
| 13 | Cap Screws | A193 B7,A193 B16,A193 B8, A193 B8M |
| 14 | Gasket | 304 SS Spiral Wound graphite, 316 SS Spiral Wound PTFE |
| 15 | Packing Gland | Stainless Steel etc. |
| 16 | Lock Nut Washer | Carbon Steel |
| 17 | Handwheel Nut | A194 2H,A194 4,A194 8,A194 8M |
| 18 | Gland | A276 410,A182 F304(L),A182 F316(L) |
| 19 | Bearing Gasket | A473 431 |
| 20 | Name Plate | Stainless Steel |
