Features
Remy's forged cryogenic gate, globe valves are specially designed to handle the technical problems that arise in the production, transport and storage of liquefying gases such as Oxygen, Nitrogen, Argon, Natural Gas,. All basic design features of ENE forged cryogenic gate, globe valves outlined in this catalog are adapted to special service conditions at cryogenic temperatures. Body and bonnet: stainless steel (A182 F316L) forgings used for bodies and bonnets offer excellent impact strength, minimal heat loss and protection against corrosion.
Materials
| NO. | Part Name | AS to ASTM | SS to ASTM | ||||
| Type LF2 | Type LF3 | Type F304(L) | Type F316(L) | ||||
| 1 | Body | A350 LF2 | A350 LF3 | A182 F304(L) | A182 F316(L) | ||
| 2 | Seat Ring | A276 420 | A276 410 | A276 304(L) | A276 316(L) | ||
| 3 | Wedge | A350 LF2 | A350 LF3 | A182 F304(L) | A182 F316(L) | ||
| 4 | Gasket | Corrugated SS + graphite | SS + PTFE | ||||
| 5 | Bonnet | A350 LF2 | A350 LF3 | A182 F304(L) | A182 F316(L) | ||
| 6 | Bonnet Bolt | A193 B7 | A193 B7 | A193 B8 | A193 B8M | ||
| 7 | Stem | A182 F6 | A182 F6 | A182 F304(L) | A182 F316(L) | ||
| 8 | Stem Packing | Flexible Graphite | PTFE | ||||
| 9 | Pin | A276 420 | A276 304 | ||||
| 10 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M | ||
| 11 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | |||
| 12 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) | ||
| 13 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M | ||
| 14 | Yoke Nut | A276 420 | |||||
| 15 | Bearing Gasket | A473 431 | |||||
| 16 | Nameplate | SS | |||||
| 17 | H.W. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M | ||
| 18 | Hand wheel | A197 | |||||
| Suitable Temperature | -40°C | -101°C | -196°C | ||||
ASME Pressure Classes 800 Lb-Forged Cryogenic
Bolted and Welded Bonnet-Threaded and
Socket

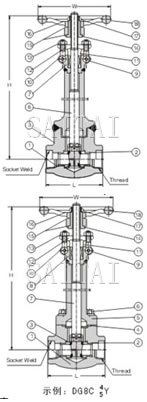

weld Ends- Dimensions (mm) and Weights (kg)
| NPS | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| L | 79 | 92 | 111 | 120 | 120 | 140 | 178 | |
| H(OPEN) | 330 | 333 | 360 | 407 | 475 | 475 | 551 | |
| W | 100 | 100 | 125 | 160 | 160 | 180 | 200 | |
| Weights | Bolted | 5.2 | 7.1 | 9.4 | 13.5 | 15.0 | 17.8 | 28.0 |
| Welded | 4.8 | 6.4 | 8.7 | 12.2 | 13.4 | 15.2 | 26.0 | |
Specifications
ASME Pressure Classes: 800 Lb
Sizes: 3/8, 1/2, 3/4, 1-1/4, 1-1/2, 2" ( DN 10, 15, 20, 25, 32, 40, 50 mm )
Ends: Threaded and Socket weld
Bonnet: Bolted, Welded
Materials: Stainless steel, Alloy steel
Temperature: >-384°F (196 °C)
Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park
