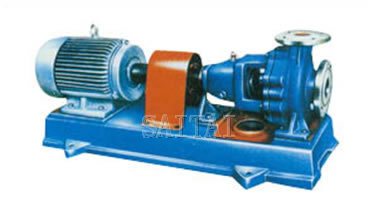

Stainless Steel Chemical Centrifugal Pump

I Stainless Steel Chemical Centrifugal Pump Summary

IH series stainless steel chemical centrifugal pump is single-stage and single-suction (axial suction ) corrosion Cresisting centrifugal pump, which pumps corrosive liquid without solid particle and glueyness similar to water. The temperature of medium is-20℃~150℃, if necessary, cooling measure can be taken to reach a higher temperature. ENINE yielding IH series stainless steel chemical centrifugal pump applies to petroleum, chemical, metallurgical, power,
paper making, foodstuff, pharmaceutical, and synthetic fiber industry, etc.

II Stainless Steel Chemical Centrifugal Pump's Range Of Properties

Capacity Q 0.3~400m³/h	Power 0.55~90KW
Head H 5~125m	Inlet diameter 32~200mm
Rotational speed n 2900,1450r/min	Max operating persure 1.6MPa

III Stainless Steel Chemical Centrifugal Pump's Operating Property Table

Model	Capacity Q		Head H(m)	Speed (r/min)	Power P (KW)		Efficiency (%)	NPSHr (m)
Model	M³/h	L/S	Head H(m)	Speed (r/min)	Shaft Power	Motor Power	Efficiency (%)	NPSHr (m)
IH32-20-125	3.2	0.88	20	2900	0.48	Select according to viscosity and granite of liquid	35	5
IH32-20-160	3.2	0.88	32		0.93		30	3.5
IH32-20-200	3.2	0.88	50		1.62		27	4
IH32-20-250	3.2	0.88	80		4.1		17	4.5
IH40-25-125	6.3	1.74	20		0.66		52	5
IH40-25-160	6.3	1.74	32		1.53		36	3.5
IH40-25-200	6.3	1.74	50		2.52		34	3.5
IH40-25-250	6.3	1.74	80		5.3		26	4.5
IH50-32-125	7.5	2.08	23	2900	1.09		43	2
	12.5	3.47	20		1.33		51	2
	15	4.17	18		1.5		49	2.5
IH50-32-125A	6.8	1.89	18.8	2900	0.87		40	2
	11.3	3.14	16.4		1.01		50	2
	13.6	3.78	14.7		1.16		47	2.5
IH50-32-125	3.75	1.04	5.57	1450	0.16		36	1
	6.3	1.74	5		0.19		45	1
	7.5	2.08	4.5		0.21		44	1.2
IH50-32-125A	3.4	0.94	4.7	1450	0.13		33.3	1
	5.7	1.59	4.1		0.149		43	1
	6.8	1.89	3.7		0.163		42	1.2
IH50-32-160	7.5	2.08	34.5	2900	2.13		33	2
	12.5	3.47	32		2.37		46	2
	15	4.17	30		2.45		50	2.5
IH50-32-160A	6.8	1.89	28.5	2900	1.76		30	2
	11.3	3.14	26.4		1.85		44	2
	13.6	3.78	24.8		1.91		48	2.5
IH50-32-160	3.75	1.04	8.6	1450	0.3		29	1
	6.3	1.74	8		0.34		40	1
	7.5	2.08	7.5		0.36		43	1.2
IH50-32-160A	3.4	0.94	7.1	1450	0.253		25.9	1
	5.7	1.59	6.6		0.277		37.1	1
	6.8	1.89	6.2		0.28		41	1.5
IH50-32-200	7.5	2.08	51.8	2900	3.78		28	2
	12.5	3.47	50		4.36		39	2
	15	4.17	48		4.56		43	2.5
IH50-32-200A	6.8	1.89	42.7	2900	3.16		25	2
	11.3	3.14	41		3.24		38	2
	13.6	3.78	39.5		3.57		41	2.5
IH50-32-200	3.75	1.04	12.9	1450	0.57		23	1
	6.3	1.74	12.5		0.65		33	1
	7.5	2.08	12		0.68		36	1.2
IH50-32-200A	3.4	0.94	10.6	1450	0.488		20	1
	5.7	1.59	10.3		0.516		31	1
	6.8	1.89	9.9		0.54		34	1.2
IH50-32-250	7.5	2.08	82	2900	7.28		23	2
	12.5	3.47	80		8.25		33	2
	15	4.17	78.5		8.79		36.5	2.5
IH50-32-250A	7	1.94	71.9	2900	6.84		20	2
	11.7	3.25	70		6.97		32	2
	14	3.89	68.8		7.71		34	2.5
IH50-32-250B	6.6	1.83	63.6	2900	5.71		20	2
	11	3.06	62		6.19		30	2
	13.2	3.67	60.9		6.64		33	2.5
IH50-32-250	3.75	1.04	20.5	1450	1.23		17	1
	6.3	1.74	20		1.27		27	1
	7.5	2.08	6.2		1.29		31	1.2
IH50-32-250A	3.51	0.98	18	1450	1.12		15.4	1
	5.9	1.64	17.5		1.125		25	1
	7.02	1.95	17.2		1.18		27.9	1.2
IH65-50-125	15	4.17	21.3	2900	1.85		47	2
	25	6.94	20		2.2		62	2
	30	8.33	18.6		2.4		63	2.5

Model	Capacity Q		Head H (m)	Speed (r/min)	Head P (KW)		Efficiency (%)	NPSH r (m)
Model	M³/h	L/S	Head H (m)	Speed (r/min)	Shaft Power	Motor Power	Efficiency (%)	NPSH r (m)
IH65-50-125A	13.6	3.78	17.6	2900	1.48	Select according to viscosity and granite of liquid	44	2
	22.7	6.31	16.5		1.67		61	2
	27.3	7.58	15.4		1.91		59.9	2.5
IH65-50-125	7.5	2.08	5.4	1450	0.25		44	1
	12.5	3.47	5		0.31		55	1
	15	4.17	4.5		0.33		56	1.2
IH65-50-125A	6.8	1.89	4.5	1450	0.23		41	1
	11.3	3.14	4.1		0.234		54	1
	13.6	3.78	3.7		0.258		53	1.2
IH65-50-160	15	4.17	34.2	2900	3.18		44	2
	25	6.94	32		3.82		57	2
	30	8.33	30		4.15		59	2.5
IH65-50-160A	13.6	3.78	28.4	2900	2.56		41	2
	22.7	6.31	26.5		2.93		56	2
	27.3	7.58	24.8		3.29		56	2.5
IH65-50-160	7.5	2.08	8.55	1450	0.45		39	1
	12.5	3.47	8		0.53		51	1
	15	4.17	7.5		0.58		52.5	1.2
IH65-50-160A	6.8	1.89	7.09	1450	0.37		35.5	1
	11.3	3.14	6.6		0.41		49.6	1
	13.6	3.78	6.2		0.46		49.9	1.2
IH65-40-200	15	4.17	53.2	2900	5.3		41	2
	25	6.94	50		6.55		52	2
	30	8.33	47.6		7.27		53.5	2.5
IH65-40-200A	13.6	3.78	43.9	2900	4.28		38	2
	22.7	6.31	41		5.07		50	2
	27.3	7.58	39.3		5.73		51	2.5
IH65-40-200	7.5	2.08	13.3	1450	0.78		35	1
	12.5	3.47	12.5		0.93		46	1
	15	4.17	11.9		1.02		47.5	1.2
IH65-40-200A	6.8	1.89	11	1450	0.64		31.8	1
	11.3	3.14	10.3		0.72		44	1
	13.6	3.78	9.8		0.81		44.8	1.2
IH65-40-250	15	4.17	81.2	2900	9.76		34	2
	25	6.94	80		11.84		46	2
	30	8.33	78.4		12.8		50	2.5
IH65-40-250A	14	3.89	71	2900	8.73		31	2
	23.4	6.5	74.8		10.6		45	2
	28	7.78	68.6		11.13		47	2.5
IH65-40-250B	13.2	3.67	62.8	2900	7.29		31	2
	22	6.11	61.8		8.42		44	2
	26.4	7.33	53		8.45		45	2.5
IH65-40-250	7.5	2.08	20.3	1450	1.48		28	1
	12.5	3.47	20		1.75		39	1
	15	4.17	19.6		1.86		43	1.2
IH65-40-250A	7	1.94	17.8	1450	1.35		25	1
	11.7	3.25	17.5		1.47		37.9	1
	14	3.89	17.2		1.64		40	1.2
IH65-40-315	15	4.17	126.8	2900	18.5		28	2
	25	6.94	125		21.8		39	2
	30	8.33	124		23.8		42.5	2.5
IH65-40-315A	14	3.89	111.2	2900	18.1		25	2
	23.4	6.5	109.5		18.36		38	2
	28	7.78	108.8		22.12		40	2.5
IH65-40-315B	13.2	3.67	98	2900	14.69		24	2
	22	6.11	96.5		15.63		37	2
	26.4	7.33	95.9		17.67		39	2.5
IH65-40-315	7.5	2.08	32.4	1450	3		22	1
	12.5	3.47	32		3.3		33	1
	15	4.17	31.7		3.5		37	1.2
IH65-40-315A	7	1.94	28.4	1450	2.84		19	1
	11.7	3.25	28		2.78		31	1
	14	3.89	27.8		3.12		34	1.2

Model	Capacity Q		Head H (m)	Speed (r/min)	Power P (KW)		Efficiency (%)	NPSHr (m)
Model	M³/h	L/S	Head H (m)	Speed (r/min)	Shaft Power	Motor Power	Efficiency (%)	NPSHr (m)
IH80-65-125	30	8.33	23.2	2900	3.16	Select according to viscosity and granite of liquid	60	3
	50	13.9	20		3.95		69	3
	60	16.7	17.6		4.29		67	4
IH80-65-125A	27.2	7.56	19.1	2900	2.48		57	3
	45.3	12.58	16.5		3.14		67	3
	54.5	15.12	14.5		3.36		64	4
IH80-65-125	15	4.17	5.8	1450	0.44		54	1.5
	25	6.94	5		0.53		64	1.5
	30	8.33	4.4		0.58		62	1.7
IH80-65-125A	13.6	3.78	4.8	1450	0.349		51	1.5
	22.6	6.28	4.1		0.407		62	1.5
	27.2	7.56	3.6		0.452		59	1.7
IH80-65-160	30	8.33	36	2900	5.16		57	2
	50	13.9	32		6.5		67	2.3
	60	16.7	28.4		7.14		65	3.3
IH80-65-160A	27.2	7.56	29.7	2900	4.08		54	2
	45.4	12.6	26.4		5.02		65	2.3
	54.4	15.12	23.4		5.39		62	3.3
IH80-65-160	15	4.17	9	1450	0.74		50	1.1
	25	6.94	8		0.88		62	1.1
	30	8.33	7.2		0.95		62	1.3
IH80-65-160A	13.6	3.78	7.4	1450	0.58		47.3	1.1
	22.7	6.31	6.6		0.68		60	1.1
	27.2	7.56	5.9		0.74		59	1.3
IH80-50-200	30	8.33	55.2	2900	8.5		53	2
	50	13.9	50		10.8		63	2.5
	60	16.7	45.2		11.9		62	3.2
IH80-50-200A	27.2	7.56	45.4	2900	6.73		50	2
	45.3	12.58	41		8.29		61	2.5
	54.4	15.12	37.2		9.35		59	3.2
IH80-50-200	15	4.17	13.5	1450	1.25		44	1.1
	25	6.94	12.5		1.49		57	1.1
	30	8.33	11.5		1.6		58	1.3
IH80-50-200A	13.6	3.78	11.1	1450	1		41	1.1
	22.7	6.31	10.3		1.135		56.1	1.1
	27.2	7.56	9.5		1.28		55	1.3
IH80-50-250	30	8.33	84	2900	16		43	2.5
	50	13.9	80		20.6		53	2.5
	60	16.7	75		22.7		54	2.5
IH80-50-250A	28.14	7.82	73.55	2900	13.2		42.7	2.5
	46.9	13.03	70.5		16.1		56	2.5
	56.28	15.63	67.4		17.8		58.03	3
IH80-50-250B	26.4	7.33	64.8	2900	11.4		40.86	2.5
	44	12.22	62.2		13.8		54	2.5
	52.8	14.67	60		15		57.52	3
IH80-50-250	15	4.17	21	1450	2.15		40	1.2
	25	6.94	20		2.72		50	1.2
	30	8.33	18.8		3.01		51	1.5
IH80-50-250A	14.04	3.9	18.2	1450	1.66		42	1.2
	23.4	6.5	17.6		2.25		50	1.2
	28.08	7.8	16.7		2.63		48.5	1.5
IH80-50-315	30	8.33	128	2900	33.1		38	2.5
	50	13.9	125		34.1		50	2.5
	60	16.7	123		38		53	3
IH80-50-315A	28.14	7.82	113.4	2900	21.5		40.4	2
	46.9	13.03	110		28.1		50	2
	56.28	15.63	107.7		30		55	2.5
IH80-50-315B	26.4	7.33	100.5	2900	17		43.5	2
	44	12.22	97		24.2		48	2
	52.8	14.67	95		25		54.6	2.5
IH80-50-315	15	4.17	32.5	1450	3.59		37	1
	25	6.94	32		4.54		48	1
	30	8.33	31.5		4.95		52	1.2

Models	Capacity Q		Head H (m)	Speed (r/min)	Power P (KW)		Efficiency (%)	NPSH r (m)
Models	M³/h	L/S	Head H (m)	Speed (r/min)	Shaft Power	Motor Power	Efficiency (%)	NPSH r (m)
IH80-50-315A	14.1	3.92	29.2	1450	3.52	Select according to viscosity and granite of liquid	31.8	1
	23.5	6.53	28.3		4.12		44	1
	28.2	7.83	27.1		4.41		47.2	1.2
IH100-80-125	60	16.7	23.7	2900	5.96		65	3
	100	27.8	20		7.47		73	4.2
	120	33.3	16.3		7.72		69	4.8
IH100-80-125A	55	15.3	19.4	2900	4.68		62	3
	91.8	25.5	16.8		5.9		71	4.2
	109	30.5	13.7		6.12		67	4.8
IH100-80-160	60	16.7	37	2900	10.1		60	3.8
	100	27.8	32		11.9		73	4.3
	120	33.3	28		12.5		73	5
IH100-80-160A	54.6	15.17	30.6	2900	7.98		57	3.8
	91	25.28	26.5		9.25		71	4.3
	109.2	30.34	23.2		9.85		70.4	5
IH100-80-160	30	8.33	9.25	1450	1.3		58	2.1
	50	13.9	8		1.58		69	2.1
	60	16.7	7		1.68		68	2.3
IH100-80-160A	27.3	7.58	7.66	1450	1.03		55.3	2.1
	45.5	12.64	6.6		1.22		67	2.1
	54.6	15.16	5.8		1.32		65.3	2.3
IH100-65-200	60	16.7	56	2900	14.5		63	3.4
	100	27.8	50		18.9		72	3.9
	120	23.3	44		20.3		71	5.2
IH100-65-200A	54.6	15.17	46.5	2900	11.5		60.1	3.4
	91	25.28	41.5		14.7		70	3.9
	109.2	30.34	36.6		16		68	5.2
IH100-65-200	30	8.33	14	1450	1.91		60	1.8
	50	13.9	12.5		2.5		68	1.8
	60	16.7	11		2.85		63	2.1
IH100-65-200A	27.3	7.58	11.6	1450	1.51		57	1.8
	45.5	12.64	10.3		1.83		66	1.8
	54.6	15.16	9.1		2.25		60.1	2.1
IH100-65-250	60	16.7	88	2900	25.2		57	3
	100	27.8	80		32		68	3.6
	120	33.3	74		36.1		67	4.5
IH100-65-250A	56.11	15.58	77	2900	21.8		54	3
	93.5	25.97	70		27.4		65	3.6
	112.2	31.16	64.7		30.9		64	4.5
IH100-65-250B	52.7	14.64	67.9	2900	18.3		53.3	3
	87.8	24.39	61.7		23.1		64	3.6
	105.4	29.28	57		26		62.9	4.5
IH100-65-250	30	8.33	22	1450	3.6		50	1.8
	50	13.9	20		4.3		63	1.8
	60	16.7	18.5		4.7		64	2.1
IH100-65-250A	28	7.79	19.2	1450	3.12		47	1.8
	45.5	12.64	17.4		3.53		61	1.8
	56	15.58	16.2		4.06		60.9	2.1
IH100-65-315	60	16.7	132	2900	44.9		48	2.8
	100	27.8	125		54.9		62	3.2
	120	33.8	119		60.8		64	4.2
IH100-65-315A	56.1	15.58	115.5	2900	39.2		45	2.8
	93.5	25.97	109		45.5		61	3.2
	112.2	31.16	104		52.1		61	4.2
IH100-65-315B	52.7	14.64	102	2900	33.3		44	2.8
	88	24.44	97		38.7		60	3.2
	105.4	29.28	92		44		60	4.2
IH100-65-315	30	8.33	33.5	1450	6.2		44	1.6
	50	13.9	32		7.5		58	1.6
	60	16.7	30.5		8.3		60	1.9
IH100-65-315A	28	7.79	29.3	1450	5.46		41	1.6
	46.5	12.92	28		6.33		56	1.6
	56	15.58	26.7		7.15		57	1.9

Model	Capacity Q		Head H (m)	Speed (r/min)	Power P (KW)		Efficiency (%)	NPSHr (m)
Model	M³/h	L/S	Head H (m)	Speed (r/min)	Shaft Power	Motor Power	Efficiency (%)	NPSHr (m)
IH125-80-160				2900		Select according to viscosity and granite of liquid
	160	44.4	32		17.7		79	5.3

IH125-80-200				2900
IH125-80-200	160	44.4	50	2900	28.3		77	4.3
IH125-80-250				2900
	160	44.4	80		47.1		74	4

IH125-100-200	120	33.3	61	2900	29.3		68	4.5
	200	55.6	50		35.4		77	5
	240	66.7	41		38.3		70	5.8
IH125-100-200A	109.1	30.3	50.5	2900	23.1		64.9	4.5
	182	50.56	41.4		27.4		75	5
	218.2	60.6	34		30.1		67.1	5.8
IH125-100-200	60	16.7	15.25	1450	3.89		64	2.5
	100	27.8	12.5		4.66		73	2.9
	120	33.3	10.25		5.08		66	3.6
IH125-100-200A	54.7	15.2	12.6	1450	3.08		61	2.5
	91	25.28	10.3		3.6		71	2.9
	109.4	30.4	8.5		4.02		63	3.6
IH125-100-250	120	33.3	90	2900	47.4		62	3.7
	200	55.6	80		58.1		75	4.5
	240	66.7	73		64.5		74	5.5
IH125-100-250A	112	31.1	78	2900	40.3		59	3.7
	186.5	51.8	69.5		48.35		73	4.5
	224	62.2	63.5		54.5		71	5.5
IH125-100-250B	105.5	29.3	69	2900	34.2		58	3.7
	175.5	48.75	61.5		41.4		71	4.5
	211	58.6	56		46		69.9	5.5
IH125-100-250	60	16.7	22.5	1450	6.23		59	2
	100	27.8	20		7.56		72	2.3
	120	33.3	18.25		8.4		71	3
IH125-100-250A	56	15.56	19.5	1450	5.31		56	2
	93	25.83	17.4		6.29		70	2.3
	112	31.1	15.9		7.13		68	3
IH125-100-315	120	33.3	132.5	2900	65.3		52.6	4
	200	55.6	125		94.6		72	4.5
	240	66.7	120		103		75	5
IH125-100-315	60	16.7	33.5	1450	10.3		53	2.5
	100	27.8	32		13.5		65	2.5
	120	33.3	30.5		15.1		66	3
IH125-100-400	60	16.7	52	1450	17.7		48	2.5
	100	27.8	50		24.8		55	2.5
	120	33.3	48.5		25.5		62	3
IH125-100-400A	54.6	15.17	46	1450	13		44	2.5
	91	25.28	41		19		51	2.5
	109.2	30.34	36.6		19.6		58	3
IH150-125-250	120	33.3	24.8	1450	12.3		66	2.5
	200	55.6	20		14.1		77	2.8
	240	66.7	15		14.4		68	3.5
IH150-125-250A	109.1	30.3	20.5	1450	9.7		62.8	2.5
	182	50.56	16.5		10.9		75	2.8
	218.2	60.6	12.4		11.3		65.2	3.5
IH150-125-315	120	33.3	36.3	1450	18.8		63	2.5
	200	55.6	32		23.2		75	2.8
	240	66.7	28.5		25.9		72	3.8
IH150-125-315A	109.1	30.3	30	1450	14.85		60	2.5
	182	50.56	25.5		17.32		73	2.8
	218.2	60.6	23.5		20.23		69	3.8
IH150-125-400	120	33.3	57.5	1450	30.8		61	3
	200	55.6	50		38.9		70	2.5
	240	66.7	44		45.6		63	3
IH150-125-400A	109.1	30.3	47.5	1450	24.3		58	2
	182	50.56	41		29.9		68	2.5
	218.2	60.6	36.5		36.1	60	3
IH200-150-250	240	66.7	23	1450	23.3		2.5
	400	111.1	20		29.4	74	2.8
	460	127.8	18		30.6		3
IH200-150-315	240	66.7	35.6	1450	34.7	67	3
	400	111.1	32		44.1	79	3.5
	460	127.8	29.4		47.8	77	4
IH200-150-315A	218.2	60.6	29.4	1450	27.3	64	3
	363	100.8	25.5		32.7	77	3.5
	418	116.1	24.3		37.4	74	4
IH200-150-400	240	66.7	55.8	1450	54.4	67	3
	400	111.1	50		69.8	78	3.5
	460	127.8	47		78.5	75	4
IH200-150-400A	218.2	60.6	46	1450	42.7	64	3
	363	100.8	41		53.3	76	3.5
	418	116.1	38.8		61.3	72	4

Stainless Steel Chemical Centrifugal Pump Related Products

Next:Stainless Steel Corrosion-Resistant Pump

Catalog:Chemical Pumps

Above:Slag Slurry Pump
