Fij Series Chemical Centrifugal Pump

I Chemical Centrifugal Pump Summary

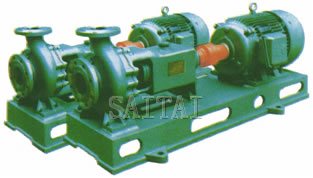

Fij Series Chemical Centrifugal Pump
Fij Series Chemical Centrifugal Pump

On the basis of model IH pump series,model FIJ cantilever-type single-stage-single-suction centrifugal chemical pump is a new product which is designed with overseas updated technologies for reference.Its rated performance and install at-ion dimension are up to ISO2858 standards,while its production technology less than 50% solid granules in chemical process.
Compared with model IH pump, model FIJ chemical centrifugal pump hays the following features in structure:

  1. Shortened cantilever of the blade wheel, and increased diameter of the shaft;
  2. Spiral case of unsymmetrical section, pump casing without mouth ring;
  3. Three imported bearings are used.
  4. A new seal, which is similar to overseas advanced double-end mechanical seal or filling seal, is installed

Because of the above structure characters, the pump has the following advantages

  1. When used in conveying media with high viscosity or containing solid granules, the pump has higher efficiency, compared with model IH pump.
  2. The spiral case with unsymmetrical section may lower the shock loss of liquid and shorten the size of pump casing.
  3. Because of increased strength of shaft and lowered deflection of rotor, the pump can operate smoothly and the seal have a long life.
  4. Because the blade wheel and its nuts are integrated, it can improve the feeding condition of the pump and strengthen the cavitations-proof performance of the pump.
  5. With advanced seal form, it is ensured that the pump has better seal effect and less leakage.
  6. The gap of the pump can be adjusted without disassembling pump casing and blade wheel.

This can lower the maintenance time and save the maintenance cost.

II Chemical Centrifugal Pump Behaviour Parameter

Model Capacity Q Head
H(m)		 Speed
(r/min)		 Power Efficiency
η
(%)		 NPSH r (m)
m3/h L/S Shaft Power Motor Power
FIJ32-20-125 3.2 0.88 20 2900 0.48 Select according
to viscosity
and
granity of liquid		 35 5.0
FIJ32-20-160 3.2 0.88 32 0.93 30 3.5
FIJ32-20-200 3.2 0.88 50 1.62 27 4.0
FIJ32-20-250 3.2 0.88 80 4.1 17 4.5
FIJ40-20-125 6.3 1.74 20 0.66 52 5.0
FIJ40-25-160 6.3 1.74 32 1.53 36 3.5
FIJ40-25-200 6.3 1.74 50 2.52 34 3.5
FIJ40-25-250 6.3 1.74 80 5.3 26 4.5
FIJ50-32-125 7.5 2.08 23 2900 1.09 43 2.0
12.5 3.47 20 1.33 51 2.0
15.0 4.17 18 1.50 49 2.5
FIJ50-32-125A 6.8 1.89 18.8 2900 1.87 40 2.0
11.3 3.14 16.4 1.01 50 2.0
13.6 3.78 14.7 1.16 47 2.5
FIJ50-32-125 3.75 1.04 5.57 1450 0.16 36 2.0
6.3 1.74 5.0 0.19 45 2.0
7.5 2.08 4.5 0.21 44 2.0
FIJ50-32-125A 3.4 0.94 4.7 1450 0.13 33.3 2.0
5.7 1.59 4.1 0.149 43 2.0
6.8 1.89 3.7 0.163 42 2.2
FIJ50-32-160 7.5 2.08 34.5 2900 2.13 33 2.0
12.5 3.47 32 2.37 46 2.0
15.0 4.17 30 2.45 50 2.5
FIJ50-32-160A 6.8 1.89 28.5 2900 1.76 30 2.0
11.3 3.14 26.4 1.85 44 2.0
13.6 3.78 24.8 1.91 48 2.5
FIJ50-32-160 3.75 1.04 8.6 1450 0.30 29 2.0
6.3 1.74 8.0 0.34 40 2.0
7.5 2.08 7.5 0.36 43 2.2
FIJ50-32-160A 3.4 0.94 7.1 1450 0.253 25.9 2.0
5.7 1.59 6.6 0.277 37.1 2.0
6.8 1.89 6.2 0.280 41 2.2
FIJ50-32-200 7.5 2.08 51.8 2900 3.78 28 2.0
12.5 3.47 50 4.36 39 2.0
15.0 4.17 48 4.56 43 2.5
FIJ50-32-200A 6.8 1.89 42.7 2900 3.16 25 2.0
11.3 3.14 41 3.24 38 2.0
13.6 3.78 39.5 3.57 41 2.5
FIJ50-32-200 3.75 1.04 12.9 1450 0.57 23 2.0
6.3 1.74 12.5 0.65 33 2.0
7.5 2.08 12.0 0.68 36 2.2
FIJ50-32-200A 3.4 0.94 10.6 1450 0.488 20 2.0
5.7 1.59 10.3 0.516 31 2.0
6.8 1.89 9.9 0.540 34 2.2
FIJ50-32-250 7.5 2.08 82 2900 7.28 23 2.0
12.5 3.47 80 8.25 33 2.0
15.0 4.17 78.5 8.79 36.5 2.5
FIJ50-32-250A 7 1.94 71.9 2900 6.84 20 2.0
11.7 3.25 70 6.97 32 2.0
14 3.89 68.8 7.71 34 2.5
FIJ50-32-250B 6.6 1.83 63.6 2900 5.71 20 2.0
11.0 3.06 62 6.19 30 2.0
FIJ50-32-250 3.75 1.04 20.5 1450 1.23 17 2.0
6.3 1.74 20 1.27 27 2.0
7.5 2.08 6.2 1.29 31 2.2
FIJ50-32-250A 3.51 0.98 18.0 1450 1.12 15.4 2.0
5.9 1.64 17.5 1.125 25 2.0
7.02 1.95 17.2 1.18 27.9 2.2
FIJ65-50-125 15 4.17 21.3 2900 1.85 47 2.0
25 6.94 20 2.2 62 2.0
30 8.33 18.6 2.4 63 2.5

Model
 Q
Capacity Q		 Head
H(m)		 Speed(r/min) Power
Efficiency
η(%)		 NPSH
r
(m)
M3/h L/S Shaft Power Motor Power
FIJ65-50-125A 13.6 3.78 17.6 2900 1.48 Select according
to
viscosity
and
granite
of
liquid		 44 2
22.7 6.31 16.5 1.67 61 2
27.3 7.58 15.4 1.91 59.9 2.5
FIJ65-50-125 7.5 2.08 5.4 1450 0.25 44 2
12.5 3.47 5 0.31 55 2
15 4.17 4.5 0.33 56 2.2
FIJ65-50-125A 6.8 1.89 4.5 1450 0.23 41 2
11.3 3.14 4.1 0.234 54 2
13.6 3.78 3.7 0.258 53 2.2
FIJ65-50-160 15 4.17 34.2 2900 3.18 44 2
25 6.94 32 3.82 57 2
30 8.33 30 4.15 59 2.5
FIJ65-50-160A 13.6 3.78 28.4 2900 2.56 41 2
22.7 6.31 26.5 2.93 56 2
27.3 7.58 24.8 3.29 56 2.5
FIJ65-50-160 7.5 2.08 8.55 1450 0.45 39 2
12.5 3.47 8 0.53 51 2
15 4.17 7.5 0.58 52.5 2.2
FIJ65-50-160A 6.8 1.89 7.09 1450 0.37 35.5 2
11.3 3.14 6.6 0.41 49.6 2
13.6 3.78 6.2 0.46 49.9 2.2
FIJ65-40-200 15 4.17 53.2 2900 5.3 41 2
25 6.94 50 6.55 52 2
30 8.33 47.6 7.27 53.5 2.5
FIJ65-40-200A 13.6 3.78 43.9 2900 4.28 38 2
22.7 6.31 41 5.07 50 2
27.3 7.58 39.3 5.73 51 2.5
FIJ65-40-200 7.5 2.08 13.3 1450 0.78 35 2
12.5 3.47 12.5 0.93 46 2
15 4.17 11.9 1.02 47.5 2.2
FIJ65-40-200A 6.8 1.89 11 1450 0.64 31.8 2
11.3 3.14 10.3 0.72 44 2
13.6 3.78 9.8 0.81 44.8 2.2
FIJ65-40-250 15 4.17 81.2 2900 9.76 34 2
25 6.94 80 11.84 46 2
30 8.33 78.4 12.8 50 2.5
FIJ65-40-250A 14 3.89 71 2900 8.73 31 2
23.4 6.5 74.8 10.6 45 2
28 7.78 68.6 11.13 47 2.5
FIJ65-40-250B 13.2 3.67 62.8 2900 7.29 31 2
22 6.11 61.8 8.42 44 2
26.4 7.33 53 8.45 45 2.5
FIJ65-40-250 7.5 2.08 20.3 1450 1.48 28 2
12.5 3.47 20 1.75 39 2
15 4.17 19.6 1.86 43 2.2
FIJ65-40-250A 7 1.94 17.8 1450 1.35 25 2
11.7 3.25 17.5 1.47 37.9 2
14 3.89 17.2 1.64 40 2.2
FIJ65-40-315 15 4.17 126.8 2900 18.5 28 2
25 6.94 125 21.8 39 2
30 8.33 124 23.8 42.5 2.5
FIJ65-40-315A 14 3.89 111.2 2900 18.1 25 2
23.4 6.5 109.5 18.36 38 2
28 7.78 108.8 22.12 40 2.5
FIJ65-40-315B 13.2 3.67 98 2900 14.69 24 2
22 6.11 96.5 15.63 37 2
26.4 7.33 95.9 17.67 39 2.5
FIJ65-40-315 7.5 2.08 32.4 1450 3 22 2
12.5 3.47 32 3.3 33 2
15 4.17 31.7 3.5 37 2.2
FIJ65-40-315A 7 1.94 28.4 1450 2.84 19 2
11.7 3.25 28 2.78 31 2
14 3.89 27.8 3.12 34 2.2

Model		 Capacity Q Head
H(m)		 Speed
(r/min)		 Power
Efficiency
η(%)		 NPSH
r (m)
FIJ80-65-125 30 8.33 23.2 2900 3.16 Select according
to
viscosity
and
granite
of
liquid		 60 3
50 13.9 20 3.95 69 3
60 16.7 17.6 4.29 67 4
FIJ80-65-125A 27.2 7.56 19.1 2900 2.48 57 3
45.3 12.58 16.5 3.04 67 3
54.4 15.12 14.5 3.36 64 4
FIJ80-65-125 15 4.17 5.8 1450 0.44 54 3
25 6.94 5 0.53 64 3
30 8.33 4.4 0.58 62 4
FIJ80-65-125A 13.6 3.78 4.8 1450 0.349 51 3
22.6 6.28 4.1 0.407 62 3
27.2 7.56 3.6 0.452 59 4
FIJ80-65-160 30 8.33 36 2900 5.16 57 2
50 13.9 32 6.5 67 2.3
60 16.7 28.4 7.14 65 3.3
FIJ80-65-160A 27.2 7.56 29.7 2900 4.08 54 2
45.4 12.6 26.4 5.02 65 2.3
54.4 15.12 23.4 5.39 62 3.3
FIJ80-65-160 15 4.17 9 1450 0.74 50 2
25 6.94 8 0.88 62 2.3
30 8.33 7.2 0.95 62 3.3
FIJ80-65-160A 13.6 3.78 7.4 1450 0.58 47.3 2
22.7 6.31 6.6 0.68 60 2.3
27.2 7.56 5.9 0.74 59 3.3
FIJ80-50-200 30 8.33 55.2 2900 8.5 53 2
50 13.9 50 10.8 63 2.5
60 16.7 45.2 11.9 62 3.2
FIJ80-50-200A 27.2 7.56 45.4 2900 6.73 50 2
45.3 12.58 41 8.29 61 2.5
54.4 15.12 37.2 9.35 59 3.2
FIJ80-50-200 15 4.17 13.5 1450 1.25 44 2
25 6.94 12.5 1.49 57 2.3
30 8.33 11.5 1.6 58 3.3
FIJ80-50-200A 13.6 3.78 11.1 1450 1 41 2
22.7 6.31 10.3 1.135 56.1 2.3
27.2 7.56 9.5 1.28 55 3.3
FIJ80-50-250 30 8.33 84 2900 16 43 2.5
50 13.9 80 20.6 53 2.5
60 16.7 75 12.7 54 2.5
FIJ80-50-250A 28.14 7.82 73.55 2900 13.2 42.7 2.5
46.9 13.03 70.5 16.1 56 2.5
56.28 15.63 67.4 17.8 58.03 3
FIJ80-50-250B 26.4 7.33 64.8 2900 11.4 40.86 2.5
44 12.22 62.2 13.8 54 2.5
52.8 14.67 60 15 57.52 3
FIJ80-50-250 15 4.17 21 1450 2.15 40 2.5
25 6.94 20 2.72 50 2.5
30 8.33 18.8 3.01 51 2.5
FIJ80-50-250A 14.04 3.9 18.2 1450 1.66 42 2.5
23.4 6.5 17.6 2.25 50 2.5
28.08 7.8 16.7 2.63 48.5 2.5
FIJ80-50-315 30 8.33 128 2900 33.1 38 2.5
50 13.9 125 34.1 50 2.5
60 16.7 123 38 53 3
FIJ80-50-315A 28.14 7.82 113.4 2900 21.5 40.4 2
46.9 13.03 110 28.1 50 2
56.28 15.63 107.7 30 55 2.5
FIJ80-50-315B 26.4 7.33 100.5 2900 17 43.5 2
44 12.22 97 24.2 48 2
52.8 14.67 95 25 54.6 2.5
FIJ80-50-315 15 4.17 32.5 1450 3.59 37 2.5
25 6.94 32 4.54 48 2.5
30 8.33 31.5 4.95 52 3

Model		 Capacity Q Head
H(m)		 Speed
(r/min)		 Power
Efficiency
η(%)		 NPSH
r (m)
FIJ80-50-315A 14.1 3.92 29.2 1450 3.52 Select according
to
viscosity
and
granite
of
liquid		 31.8 2.5
23.5 6.53 28.3 4.12 44 2.5
28.2 7.83 27.1 4.41 47.2 3
FIJ100-80-125 60 16.7 23.7 2900 5.96 65 3
100 27.8 20 7.47 73 4.2
120 33.3 16.3 7.72 69 4.8
FIJ100-80-125A 55 15.3 19.4 2900 4.68 62 3
91.8 25.5 16.8 5.9 71 4.2
109 30.5 13.7 6.12 67 4.8
FIJ100-80-160 60 16.7 37 2900 10.1 60 3.8
100 27.8 32 11.9 73 4.3
120 33.3 28 12.5 73 5
FIJ100-80-160A 54.6 15.17 30.6 2900 7.98 57 3.8
91 25.28 26.5 9.25 71 4.3
109.2 30.34 23.2 9.85 70.4 5
FIJ100-80-160 30 8.33 9.25 1450 1.3 58 3.8
50 13.9 8 1.58 69 4.3
60 16.7 7 1.68 68 5
FIJ100-80-160A 27.3 7.58 7.66 1450 1.03 55.3 3.8
45.5 12.64 6.6 1.22 67 4.3
54.6 15.16 5.8 1.32 65.3 5
FIJ100-65-200 60 16.7 56 2900 14.5 63 3.4
100 27.8 50 18.9 72 3.9
120 23.3 44 20.3 71 5.2
FIJ100-65-200A 54.6 15.17 46.5 2900 11.5 60.1 3.4
91 25.28 41.5 14.7 70 3.9
109.2 30.34 36.6 16 68 5.2
FIJ100-65-200 30 8.33 14 1450 1.91 60 3.4
50 13.9 12.5 2.5 68 3.9
60 16.7 11 2.85 63 5.3
FIJ100-65-200A 27.3 7.58 11.6 1450 1.51 57 3.4
45.5 12.64 10.3 1.83 66 3.9
54.6 15.16 9.1 2.25 60.1 5.2
FIJ100-65-250 60 16.7 88 2900 25.2 57 3
100 27.8 80 32 68 3.6
120 33.3 74 36.1 67 4.5
FIJ100-65-250A 56.11 15.58 77 2900 21.8 54 3
93.5 25.97 70 27.4 65 3.6
112.2 31.16 64.7 30.9 64 4.5
FIJ100-65-250B 52.7 14.64 67.9 2900 18.3 53.3 3
87.8 24.39 61.7 23.1 64 3.6
105.4 29.28 57 26 62.9 4.5
FIJ100-65-250 30 8.33 22 1450 3.6 50 3
50 13.9 20 4.3 63 3.6
60 16.7 18.5 4.7 64 4.5
FIJ100-65-250A 28 7.79 19.2 1450 3.12 47 3
45.5 12.64 17.4 3.53 61 3.6
56 15.58 16.2 4.06 60.9 4.5
FIJ100-65-315 60 16.7 132 2900 44.9 48 2.8
100 27.8 125 54.9 62 3.2
120 33.8 119 60.8 64 4.2
FIJ100-65-315A 56.1 15.58 115.5 2900 39.2 45 2.8
93.5 25.97 109 45.5 61 3.2
112.2 31.16 104 52.1 61 4.2
FIJ100-65-315B 52.7 14.64 102 2900 33.3 44 2.8
88 24.44 97 38.7 60 3.2
105.4 29.28 92 44 60 4.2
FIJ100-65-315 30 8.33 33.5 1450 6.2 44 2.8
50 13.9 32 7.5 58 3.2
60 16.7 30.5 8.3 60 4.2
FIJ100-65-315A 28 7.79 29.3 1450 5.46 41 2.8
46.5 12.92 28 6.33 56 3.2
56 15.58 26.7 7.15 57 4.2

Model		 Capacity Q Head
H(m)		 Speed
(r/min)		 Power
Efficiency
η(%)		 NPSH
r (m)
FIJ125-80-160 2900 Select according
to
viscosity
and
granite
of
liquid
160 44.4 32 17.7 79 5.3
FIJ125-80-200 2900
160 44.4 50 28.3 77 4.3
FIJ125-80-200 2900
160 44.4 80 47.1 74 4
FIJ125-100-200 120 33.3 61 2900 29.3 68 4.5
200 55.6 50 35.4 77 5
240 66.7 41 38.3 70 5.8
FIJ125-100-200A 109.1 30.3 50.5 2900 23.1 64.9 4.5
182 50.56 41.4 27.4 75 5
218.2 60.6 34 30.1 67.1 5.8
FIJ125-100-200 60 16.7 15.25 1450 3.89 64 4.5
100 27.8 12.5 4.66 73 5
120 33.3 10.25 5.08 66 5.8
FIJ125-100-200A 54.7 15.2 12.6 1450 3.08 61 4.5
91 25.28 10.3 3.6 71 5
109.4 30.4 8.5 4.02 63 5.8
FIJ125-100-250 120 33.3 90 2900 47.4 62 3.7
200 55.6 80 58.1 75 4.5
240 66.7 73 64.5 74 5.5
FIJ125-100-250A 112 31.1 78 2900 40.3 59 3.7
186.5 51.8 69.5 48.35 73 4.5
224 62.2 63.5 54.5 71 5.5
FIJ125-100-250B 105.5 29.3 69 2900 34.2 58 3.7
175.5 48.75 61.5 41.4 71 4.5
211 58.6 56 46 69.9 5.5
FIJ125-100-250 60 16.7 22.5 1450 6.23 59 3.7
100 27.8 20 7.56 72 4.5
120 33.3 18.25 8.4 71 5.5
FIJ125-100-250A 56 15.56 19.5 1450 5.31 56 3.7
93 25.83 17.4 6.29 70 4.5
112 31.1 15.9 7.13 68 5.5
FIJ125-100-315 120 33.3 132.5 2900 65.3 52.6 4
200 55.6 125 94.6 72 4.5
240 66.7 120 103 75 5
FIJ125-100-315A 60 16.7 33.5 1450 10.3 53 4
100 27.8 32 13.5 65 4.5
120 33.3 30.5 15.1 66 5
FIJ125-100-400 60 16.7 52 1450 17.7 48 3.5
100 27.8 50 24.8 55 3.5
120 33.3 48.5 25.8 62 4
FIJ125-100-400A 54.6 15.17 46 1450 13 44 3.5
91 25.28 41 19 51 3.5
109.2 30.34 36.6 19.6 58 4
FIJ125-125-250 120 33.3 24.8 1450 12.3 66 2.5
200 55.6 20 14.1 77 2.8
240 66.7 15 14.4 68 3.5
FIJ125-125-250A 109.1 30.3 20.5 1450 9.7 62.8 2.5
182 50.56 16.5 10.9 75 2.8
218.2 60.6 12.4 11.3 65.2 3.5
FIJ125-125-315 120 33.3 36.3 1450 18.8 63 2.5
200 55.6 32 23.2 75 2.8
240 66.7 28.5 25.9 72 3.8
FIJ125-125-315A 109.1 30.3 30 1450 14.85 60 2.5
182 50.56 25.5 17.32 73 2.8
218.2 60.6 23.5 20.23 69 3.8
FIJ125-125-400 120 33.3 57.5 1450 30.8 61 2
200 55.6 50 38.9 70 2.5
240 66.7 44 45.6 63 3

Model		 Capacity Q Head
H(m)		 Speed
(r/min)		 Power
Efficiency
η(%)		 NPSH
r (m)
FIJ125-125-400A 109.1 30.3 47.5 1450 24.3 Select according
to
viscosity
and
granite of liquid		 58 2
182 50.56 41 29.9 68 2.5
218.2 60.6 36.5 36.1 60 3
FIJ200-150-250 240 66.7 23 1450 23.3 2.5
400 111.1 20 29.4 74 2.8
460 127.8 18 30.6 3
FIJ200-150-315 240 66.7 35.6 1450 34.7 67 3
400 111.1 32 44.1 79 3.5
460 127.8 29.4 47.8 77 4
FIJ200-150-315A 218.2 60.6 29.4 1450 27.3 64 3
363 100.8 25.5 32.7 77 3.5
418 116.1 24.3 37.4 74 4
FIJ200-150-400 240 66.7 55.8 1450 54.4 67 3
400 111.1 50 69.8 78 3.5
460 127.8 47 78.5 75 4
FIJ200-150-400A 218.2 60.6 46 1450 42.7 64 3
363 100.8 41 53.3 76 3.5
418 116.1 38.8 61.3 72 4
FIJ250-200-250A 600 12 1450
FIJ250-200-250B 540 11 1450
FIJ250-200-315A 650 24 1450
FIJ250-200-315B 600 20 1450
FIJ250-200-315C 550 16 1450
FIJ250-200-400A 650 52 1450
FIJ250-200-400B 550 45 1450
FIJ250-200-400C 500 40 1450
FIJ250-200-500A 700 75 1450
FIJ250-200-500B 650 65 1450
FIJ250-200-500C 550 55 1450
FIJ300-250-315A 950 22 1450
FIJ300-250-315B 900 20 1450
FIJ300-250-315C 800 16 1450
FIJ300-250-400A 1000 44 1450
FIJ300-250-400B 900 38 1450
FIJ300-250-400C 850 30 1450
FIJ300-250-500A 1200 80 1450
FIJ300-250-500B 1100 70 1450
FIJ300-250-500C 1000 55 1450

Model		 impeller type n=2900r/min
speed

M3/h
Capacity		 H
m
Head
relative density<1.0 relative density<1.35 relative density<1.86
motor power or model
Kw Kw Kw
FIJ32-20-125 3.2 20 1.1 YB802-2/1.1 1.5 YB802-2/1.1 1.5 YB90S-2/1.5
FIJ32-20-160 3.2 32 1.5 YB90S-2/1.5 3 YB90L-2/2.2 3 YB100L-2/3.0
FIJ32-20-200 3.2 50 3 YB100L-2/3.0 5.5 YB112M-2/4.0 5.5 YB132S1-2/5.5
FIJ32-20-250 3.2 80 5.5 YB132S1-2/5.5 11 YB132S2-2/7.5 11 YB160M1-2/11
FIJ40-25-160 6.3 20 1.5 YB90S-2/1.5 3 YB90L-2/2.2 3 YB100L-2/3.0
FIJ40-25-160 6.3 32 2.2 YB90L-2/2.2 4 YB100L-2/3.0 4 YB112M-2/4.0
FIJ40-25-200 6.3 50 4 YB112M-2/4.0 7.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5
FIJ40-25-250 6.3 80 7.5 YB132S2-2/7.5 15 YB160M1-2/11 15 YB160M2-2/15
FIJ50-32-125 12.5 20 1.5 YB90S-2/1.5 3 YB90L-2/2.2 3 YB100L-2/3.0
FIJ50-32-125A 11.3 16.4
FIJ50-32-160 12.5 32 3 YB100L-2/3.0 5.5 YB112M-2/4.0 5.5 YB132S1-2/5.5
FIJ50-32-160A 11.3 26.4 2.2 YB90L-2/2.2 4 YB100L-2/4.0 4 YB112M-2/4.0
FIJ50-32-200 12.5 50 5.5 YB132S1-2/5.5 11 YB132S2-2/7.5 11 YB160M1-2/11
FIJ50-32-200A 11.3 41 4 YB112M-2/4.0 7.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5
FIJ50-32-250 12.5 80 11 YB160M1-2/11 18.5 YS160M2-2/15 18.5 YB160L-2/18.5
FIJ50-32-250A 11.7 70 7.5 YB132S2-2/7.5 15 YB160M1-2/11 15 YB160M2-2/15
FIJ50-32-250B 11 62
FIJ65-50-125 25 20 3 YB100L-2/3.0 5.5 YB112M-2/4.0 5.5 YB132S1-2/5.5
FIJ65-50-125A 22.7 16.5 2.2 YB90L-2/2.2 4 YB100L-2/3.0 4 YB112M-2/4.0
FIJ65-50-160 25 32 5.5 YB132S1-2/5.5 7.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5
FIJ65-50-160A 22.7 26.5 4 YB112M-2/4.0 5.5 YB112M-2/4.0 5.5 YB132S1-2/5.5
FIJ65-40-200 25 50 7.5 YB132S2-2/7.5 11 YB160M1-2/11 15 YS160M2-2/15
FIJ65-40-200A 22.7 41 5.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5 11 YB160M1-2/11
FIJ65-40-250 25 80 15 YS160M2-2/15 18.5 YB160L-2/18.5 22 YB180M-2/22
FIJ65-40-250A 23.4 74.8 11 YB160M1-2/11 15 YS160M2-2/15
FIJ65-40-250B 22 61.8 18.5 YB160L-2/18.5
FIJ65-40-315 25 125 30 YB200L1-2/30 30 YB200L1-2/30 45 YB225M-2/45
FIJ65-40-315A 23.4 109.5 22 YB180M-2/22 30 37 YB200L2-2/37
FIJ65-40-315B 22 96.5 18.5 YB160L-2/18.5 22 YB180M-2/22 30 YB200L1-2/30
FIJ80-65-125 50 20 4 YB112M-2/4.0 5.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5
FIJ80-65-125A 45.3 16.5
FIJ80-65-160 50 32 7.5 YB132S2-2/7.5 11 YB160M1-2/11 15 YS160M2-2/15
FIJ80-65-160A 45.4 26.4 5.5 YB132S1-2/5.5 7.5 YB132S1-2/5.5 11 YB160M1-2/11
FIJ80-50-200 50 50 11 YB160M1-2/11 15 YS160M2-2/15 22 YB180M-2/22
FIJ80-50-200A 45.3 41 18.5 YB160L-2/18.5
FIJ80-50-250 50 80 22 YB180M-2/22 30 YB200L1-2/30 45 YB225M-2/45
FIJ80-50-250A 46.9 70.5 18.5 YB160L-2/18.5 22 YB180M-2/22 30 YB200L1-2/30
FIJ80-50-250B 44 62.2 15 YB160M2-2/15 22 30
FIJ80-50-315 50 125 37 YB200L2-2/37 55 YB250M-2/55 75 YB280S-2/75
FIJ80-50-315A 46.9 110 30 YB200L1-2/30 45 YB225M-2/45 55 YB250M-2/55
FIJ80-50-315B 44 9.7 30 37 YB200L2-2/37 45 YB225M-2/45
FIJ100-80-125 100 20 11 YB160M1-2/11 11 YB160M1-2/11 15 YB160M2-2/15
FIJ100-80-125A 91.8 16.8 7.5 YB132S2-2/7.5 11 YB160M1-2/11
FIJ100-80-160 100 32 15 YB160M2-2/15 18.5 YB160L-2/18.5 22 YB180M-2/22
FIJ100-80-160A 91 26.5 11 YB160M1-2/11 15 YB160M2-2/15 18.5 YB160L-2/18.5
FIJ100-65-200 100 50 22 YB180M-2/22 30 YB200L1-2/30 37 YB200L2-2/37
FIJ100-65-200A 91 41.5 18.5 YB160L-2/18.5 22 YB180M-2/22 30 YB200L1-2/30

Model		 n=1450r/min
speed

M3/h
Capacity		 H
m
Head
relative density<1.0 relative density<1.35 relative density<1.86
Kw Kw Kw
FIJ32-20-125
FIJ32-20-160
FIJ32-20-200
FIJ32-20-250
FIJ40-25-160
FIJ40-25-160
FIJ40-25-200
FIJ40-25-250
FIJ50-32-125 6.3 5 0.55 YB801-4/0.55 0.55 YB801-4/0.55 0.55 YB801-4/0.55
FIJ50-32-125A 5.7 4.1
FIJ50-32-160 6.3 8 0.75 YB802-4/0.75
FIJ50-32-160A 5.7 6.6
FIJ50-32-200 6.3 12.5 0.75 YB802-4/0.75 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5
FIJ50-32-200A 5.7 10.3 0.75 YB802-4/0.75 1.1 YB90S-4/1.1
FIJ50-32-250 6.3 20 1.5 YB90L-4/1.5 2.2 YB100L-4/2.2 3 YB100L2-4/3.0
FIJ50-32-250A 5.9 17.5 2.2 YB100L1-4/2.2
FIJ50-32-250B
FIJ65-50-125 12.5 8 0.55 YB801-4/0.55 0.55 YB801-4/0.55 1.1 YB90S-4/1.1
FIJ65-50-125A 11.3 4.1 0.55 0.55 YB801-4/0.55
FIJ65-50-160 12.5 8 0.75 YB802-4/0.75 1.1 YB90S-4/1.1
FIJ65-50-160A 11.3 6.6 0.55 0.75 1.1
FIJ65-40-200 12.5 12.5 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5 2.2 YB100L1-4/2.2
FIJ65-40-200A 11.3 10.3 0.75 YB802-4/0.75 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5
FIJ65-40-250 12.5 20 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0 4 YB112M-4/4.0
FIJ65-40-250A 11.7 17.5 1.5 YB90L-4/1.5 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0
FIJ65-40-250B 4 YB112M-4/4.0 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5
FIJ65-40-315 12.5 32
FIJ65-40-315A 11.7 28 3 YB100L2-4/3.0 4 YB112M-4/4.0 5.5 YB132S-4/5.5
FIJ65-40-315B
FIJ80-65-125 25 5 0.75 YB802-4/0.75 0.75 YB802-4/0.75 1.1 YB90S-4/1.1
FIJ80-65-125A 22.6 4.1 0.55 YB801-4/0.55 0.55 YB801-4/0.55 0.75 YB802-4/0.75
FIJ80-65-160 25 8 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5 2.2 YB100L1-4/2.2
FIJ80-65-160A 22.7 6.6 0.75 YB802-4/0.75 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5
FIJ80-50-200 25 12.5 1.5 YB90L-4/1.5 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0
FIJ80-50-200A 22.7 10.3 2.2 YB100L1-4/2.2
FIJ80-50-250 25 20 3 4 5.5
FIJ80-50-250A 23.4 17.6 YB100L2-4/3.0 4 YB112M-4/4.0 5.5 YB132S-4/5.5
FIJ80-50-250B 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 11 YB160M-4/11
FIJ80-50-315 25 32 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 11 YB160M-4/11
FIJ80-50-315A 23.5 28.3 5.5
FIJ80-50-315B
FIJ100-80-125 2.2 YB100L1-4/2.2 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0
FIJ100-80-125A
FIJ100-80-160 50 8
FIJ100-80-160A 45.5 6.6 1.5 YB90L-4/1.5
FIJ100-65-200 50 12.5 3 YB100L2-4/3.0 4 YB112M-4/4.0 5.5 YB132S-4/5.5
FIJ100-65-200A 45.5 10.3 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0 4 YB112M-4/4.0
FIJ100-65-250 50 20 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 1.1 YB160M-4/11
FIJ100-65-250A 45.5 17.4 4 YB112M-4/4.0 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5
Model impeller type n=2900r/min speed

M3/h
Capacity		 H
m
Head		 relative density<1.0 relative density<1.35 relative density<1.86
motor power or model
Kw - Kw - Kw -
FIJ100-65-250 - 100 80 37 YB200L2-2/37 45 YB225M-2/45 75 YB280S-2/75
FIJ100-65-250A - 93.5 70 30 YB200L2-2/30 37 YB200L2-2/37 55 YB250M-2/55
FIJ100-65-250B - 87.8 61.7 45 YB225M-2/45
FIJ100-65-315 - 100 125 75 YB280S-2/75 75 YB280S-2/75 110 YB135S-2/110
FIJ100-65-315A - 93.5 109 55 YB250M-2/55 - - -
FIJ100-65-315B - 88 97 45 YB225M-2/55 55 YB250M-2/55 75 YB280S-2/75
FIJ125-80-160 - 160 32 22 YB180M-2/22 30 YB200L1-2/30 37 YB200L2-2/37
FIJ125-80-200 - 160 50 37 YB200L2-2/37 45 YB225M-2/45 55 YB250M-2/55
FIJ125-80-250 - 160 80 55 YB250M-2/55 75 YB280S-2/75 90 YB280M-2/90
FIJ125-100-200 - 200 50 45 YB225M-2/45 55 YB250M-2/55 75 YB280S-2/75
FIJ125-100-200A - 182 41.4 30 YB200L1-2/30 37 YB200L2-2/37 55 YB250M-2/55
FIJ125-100-250 - 200 80 75 YB280S-2/75 90 YB280M-2/90 110 -
FIJ125-100-250A - 186.5 69.5 55 YB250M-2/55 75 YB280S-2/75 90 YB280M-2/90
FIJ125-100-250B - 175.5 61.5 45 YB225M-2/45
FIJ125-100-315 - 200 125 110 YB315S-2/110 132 YB315M1-2/132 - -

Model		 impeller type n=2900r/min speed
M3/h Capacity H
m
Head		 relative density<1.0 relative density<1.35 relative density<1.86
motor power or model
Kw   Kw   Kw
FIJ100-65-315   50 32 7.5 YB132M-4/7.5 11 YB160M-4/11 15 YB160L-4/15
FIJ100-65-315A   46.5 28
FIJ100-65-315B       5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 11 YB160M-4/11
FIJ125-100-200   100 12.5 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 11 YB160M-4/11
FIJ125-100-200A   91 10.3 4 YB112M-4/4.0 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5
FIJ125-100-250   100 20 11 YB160M-4/11 11 YB160M-4/11 15 YB160L-4/15
FIJ125-100-250A   93 17.4 7.5 YB132M-4/7.5 11 YB160M-4/11 15 YB160L-4/15
FIJ125-100-250B       18.5 YB180L-4/18.5 22 YB180L-4/22 30 YB200L-4/30
FIJ125-100-315   100 32 15 YB160L-4/15 22 YB180L-4/22 30 YB200L4/30
FIJ125-100-400   100 50 32 YB200L-4/30 37 YB225S-4/37 55 YB250M-4/55
FIJ150-125-250   200 20 18.5 YB180L-4/18.5 22 YB180L-4/22 30 YB200L-4/30
FIJ150-125-250A   182 16.5 15 YB160L-4/15 15 YB160L-4/15 22 YB180L-4/22
FIJ150-125-315   200 32 30 YB200L-4/30 37 YB225S-4/37 45 YB225M-4/45
FIJ150-125-315A   182 25.5 22 YB180L-4/22 30 YB220L-4/30 37 YB225S-4/37
FIJ150-125-400   200 50 45 YB225M-4/45 55 YB250M-4/55 75 YB280S-4/75
FIJ150-125-400A   182 41 37 YB225S-4/37 45 YB225M-4/45
FIJ200-150-250   400 20 37 YB225S-4/37 45 YB225M-4/45 75 YB280M-4/90
FIJ200-150-250A   360 16.2 30 YB200L-4/30 30 YB200L-4/30 45 YB225M-4/45
FIJ200-150-315   400 32 45 YB225M-4/45 75 YB280S-4/75 90 YB280S-4/75
FIJ200-150-315A   363 25.5 37 YB225S-4/37 45 YB225M-4/45 75 YB280S-4/75
FIJ200-150-400   400 50 75 YB280S-4/75 110 YB315S-4/110 132 YB315M1-4/132
FIJ200-150-400A   363 41 55 YB225M-4/45 75 YB280S-4/75 110 YB315S-4/110

Fij Series Chemical Centrifugal Pump Related Products

Next:Fluorin Plastic Enhanced Alloy Pump

Catalog:Chemical Pumps

Above:Corrosive-Resistant Pumps
