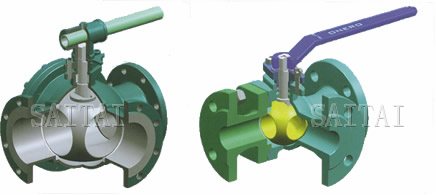

Three-Way Ball Valves

Features

Floating 3 Way

Size: 1/2"~8"
Class: 150 / 300 Lb
Two-Piece Cast Body
Floating Ball, Full Bore
Anti-Static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector

Materials

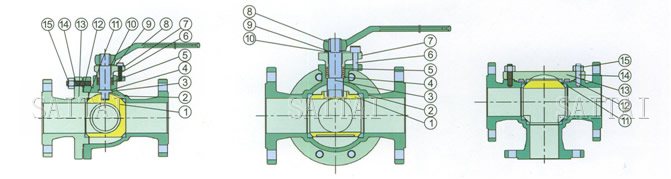

Materials of Three-Way Ball Valves

No.	Part	Material
1	Ball	A351-CF8, CF8M, CF3, CF3M, Duplex
2	Body	A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
3	Stem	ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51
4	Thrust Washer	PTFE
5	Packing	PTFE Graphite
6	Screw	ASTM A193-B7, B8
7	Gland Flange	A216-WCB A351-CF8
8	Lever	A216-WCB
9	Limited Plate	1015+Cr. Carbon Steel+Cr.
10	Retainer	Carbon Steel
11	Seat	PTFE RTPFE PEEK PPL
12	Gasket	Stainless Steel+Graphite S.S.316+Graphite
13	Bonnet	A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
14	Stud	ASTM A193-B7, B7M, B8, B8M
15	Nut	ASTM A194-2H, 2HM, 8, 8M

ASME Pressure Class 150 / 300 Lb-PTFE RTPFE PEEK PPL (Soft) Seated-Flanged Ends
Four(4) Way-Cast Body-Floating and Trunnion Mounted-Full Bore-Dimensions and Weights

Dimensions and Weights of Four-Way Ball Valves

Size	d	A	A1	H	W
in	mm	mm	mm	mm	mm
1/2	13	150	75	90	140
3/4	19	150	75	90	140
1	25	180	90	102	155
1-1/4	38	200	100	115	250
1-1/2	48	220	110	135	250
2	50	240	120	140	350
2-1/2	65	260	130	155	350
3	78	280	140	185	420
4	100	320	160	210	700
5	125	380	190	270	1000
6	148	440	220	305	1300
8	198	550	275	335	1800
