Summary
This is a Calibrated Balance Valves, suitable for various liquid pipeline systems, and is an ideal brand-new energy-saving valve, set with a scaled digital display and visually adjustable to any position and lockable.
Main used for the warming pipeline system of industrial and civil buildings. It provides the means to settle such a problem existing in some pipe-net systems as the hydraulic imbalance and can accurately adjust both step-down and flow so as to improve the flowing status of the liquid inside of the pipe-net system to reach the target of the liquid balancing and energy saving.
Use of this valve in the reform of the dual-pipe network engineering can still save energy and get a better effect.

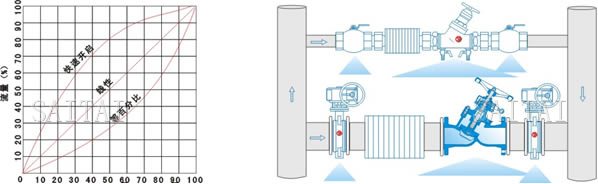

The figure below shows the curves of the flow performance of several valves, of which one of an equal percentage performance is made in my company. It can get known one equal variable rate with the opening makes the variable rate of flow equal, which features by the bigger the opening, the bigger the flow while the smaller the opening the smaller the flow. Most of the application in engineering is do neat a big flow, so this equal percentage valve is just suitable for this requirement.
Technical parameters
| Model | SP15-1016 | SP45F-1016 |
| Test pressure | 2.4MPa | |
| Working pressure | =1.6MPa | |
| Working temperature | =120°C | |
| Suitable medium | Water , oil and other liquids | |
| Performance curve | Equal percentage | |
| Range of installation and use | Trunks, branches of pipe-net system, indoor water supply trunks, vertical branches and multiple boilers | |

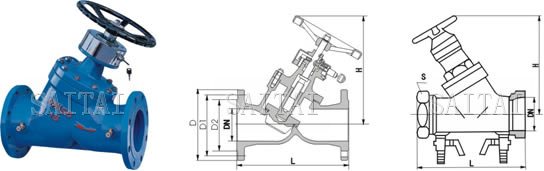

Dimensions (mm) of SP45F-10/16
| DN | D | D | D | L | H |
| 32 | 135 | 100 | 78 | 180 | 230 |
| 40 | 145 | 110 | 85 | 200 | 242 |
| 50 | 160 | 125 | 100 | 230 | 250 |
| 65 | 180 | 145 | 120 | 290 | 260 |
| 80 | 195 | 160 | 135 | 310 | 329 |
| 100 | 215 | 180 | 155 | 350 | 340 |
| 125 | 245 | 210 | 185 | 400 | 424 |
| 150 | 280 | 240 | 210 | 480 | 454 |
| 200 | 335 | 295 | 265 | 550 | 517 |
| 250 | 405 | 355 | 320 | 622 | 573 |
| 300 | 460 | 410 | 375 | 698 | 617 |
| 350 | 520 | 470 | 435 | 787 | 705 |
Dimensions (mm) of SP15F-10/16
| DN | ZG | L | S | H | Weight(Kg) |
| 15 | 1/2" | 100 | 27 | 128 | 1 |
| 20 | 3/4" | 115 | 33 | 128 | 1.5 |
| 25 | 1" | 125 | 46 | 130 | 1.8 |
| 32 | 5/4" | 140 | 55 | 150 | 2 |
| 40 | 3/2" | 160 | 55 | 187 | 2.5 |
