Float Control Valves

Features

This valve maintains constant liquid level in a tank. The pilot is sensitive to slight changes in level. The main valve open when level drops and closes when level rises. The valve consists of basic valve and buoyancy pilot and controls the outflow in a water tank supply. It is installed on the inlet of a water pool or tower. 100X Float Control Valves is controlled by the floating pilot valves to close the inlet to stop water supply when the water level gets to the preset height and to open the inlet to supply water to the water tower or pool when the water level is lower than the preset one, so as to realize the automatic water control according to the changing water level. It features by the high accuracy of level control, water pressure disturbance resisting, mountable on any positions, reliable seal performance, easy installation, maintenance, debugging and check, long duration (The floating pilot valve can be separately mounted from the main one).

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park

DN 450 Diaphragm type valve
DN 500 piston type valve
Notes:
1. Float Ball Pilot Valve
2. Ball Valve
3. Needle Valve

Technical Parameters

Nominal Pressure: 1.0, 1.6, 2.5MPa
Shell test pressure: 1.5, 2.4, 3.75MPa
Sealed test pressure : 1.1, 1.76, 2.75MPa
Suitable temperature: 80
Suitable medium: water, Sewage

Materials

Serial No.	Part	Material
1	Body	Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
2	Seat	2Cr13 / SS 304 / SS 316
3	Stem	2Cr13 / SS 304 / SS 316
4	O-ring Gasket	Cast iron
5	O-ring	NBR
6	O-ring	NBR
7	Disc	Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
8	Diaphragm	Rubber
9	Diaphragm washer	Ductile Iron
10	Nut	Bronze
11	Spring	Spring steel
12	Cover	Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
13	Pilot valve	Bronze
14	Ball valve	Bronze
15	Hang ring	Steel
16	Pilot socket	Bronze
17	Needle valve	Bronze
18	Screw	Steel
19	Stud	Steel

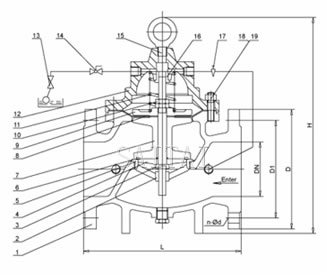

Dimensions

DNmm		20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800
L		180	180	180	203	203	235	285	360	400	455	585	650	800	860	915	980	1075	1230	1300	1450
PN10	D	105	115	135	145	160	180	195	215	245	280	335	390	440	500	565	615	670	780	895	1010
PN10	D1	75	85	100	110	125	145	160	180	210	240	295	350	400	460	515	565	620	725	840	950
PN16	D	105	115	135	145	160	180	195	215	245	280	335	405	460	520	580	640	705	840	910	1020
PN16	D1	75	85	100	110	125	145	160	180	210	240	295	355	410	470	525	585	650	770	840	950
PN25	D	105	110	135	145	160	180	195	230	270	300	360	425	485	550	610	660	730	840	955	1070
PN25	D1	75	85	100	110	125	145	160	190	220	250	310	370	430	490	550	600	660	770	875	990
H		212	212	212	265	265	310	350	460	520	570	695	780	905	1025	1080	1030	1135	1270	1460	1640
H1		179	179	179	210	210	215	245	305	365	415	510	560	658	696	735	610	665	725	865	975

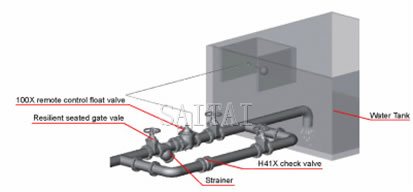

Typical Installation
