Features
Bi-Level, Non-Modulating Float-Control Valve is mounted in the water inlet pipeline of the water pool or tower. F745X Bi-Level, Non-Modulating float-Control Valve will close automatically when the level of the pool reaches the preset one and open to supple water when the level is lower than the preset one.
a. Tightly and reliably closed. Use of secure O-ring seal and hydraulic control principle makes the closing
force of the sliding disk proportional to the water pressure, leaving a high reliability of the seal.
b. Big flow. The valve body is designed as the full-path stream-line type, causing small fluid resistance and
big flow.
c. Safe running. Use of hydraulic operation can control automatically the level of the water pool or tower very
accurately.
d. Easy use and maintenance. Installation on the outside of the water pool makes the main valves debugging and
checking easy and maintenance simple.
Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park

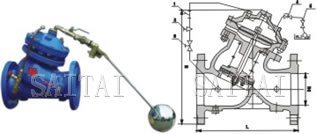

1. Strainer
2. Needle Valve
3. Small Ball Valve
4. Small Ball Valve
5. Small Float Ball Valve

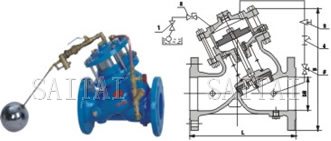

1. Small Float Ball Valve
2. Small Ball Valve
3. Needle Valve
4. Strainer
5. Small Ball Valve
Dimensions
| DN | L | D | D1 | n-d | H | ||||||
| 1.0Mpa | 1.6 (Mpa) | 2.5 (Mpa) | 1.0(Mpa) | 1.6(Mpa) | 2.5 (Mpa) | 1.0Mpa | 1.6 (Mpa) | 2.5 (Mpa) | |||
| 50 | 205 | 165 | 165 | 165 | 125 | 125 | 125 | 4-18 | 4-18 | 4-18 | 255 |
| 65 | 216 | 185 | 185 | 185 | 145 | 145 | 145 | 4-18 | 4-18 | 8-18 | 290 |
| 80 | 250 | 200 | 200 | 200 | 160 | 160 | 160 | 8-18 | 8-18 | 8-18 | 326 |
| 100 | 320 | 220 | 220 | 235 | 180 | 180 | 190 | 8-18 | 8-18 | 8-22 | 380 |
| 125 | 365 | 250 | 250 | 270 | 210 | 210 | 220 | 8-18 | 8-18 | 8-22 | 448 |
| 150 | 415 | 285 | 285 | 300 | 240 | 240 | 250 | 8-22 | 8-22 | 8-26 | 495 |
| 200 | 500 | 340 | 340 | 360 | 295 | 295 | 310 | 8-22 | 12-22 | 12-26 | 625 |
| 250 | 605 | 395 | 405 | 425 | 350 | 355 | 370 | 12-22 | 12-26 | 12-26 | 755 |
| 300 | 698 | 445 | 460 | 485 | 400 | 410 | 430 | 12-22 | 12-26 | 12-30 | 879 |
| 350 | 787 | 505 | 520 | 555 | 460 | 470 | 490 | 16-22 | 16-26 | 16-30 | 909 |
| 400 | 914 | 565 | 580 | 620 | 515 | 525 | 550 | 16-26 | 16-30 | 16-33 | 1130 |
| 450 | 978 | 615 | 640 | 670 | 565 | 585 | 600 | 20-26 | 20-30 | 16-36 | 1160 |
| 500 | 978 | 670 | 715 | 730 | 620 | 650 | 660 | 20-26 | 20-33 | 20-36 | 1198 |
| 600 | 1150 | 780 | 840 | 845 | 725 | 770 | 770 | 20-30 | 20-36 | 20-39 | 1600 |
| 700 | 1300 | 895 | 910 | 960 | 840 | 840 | 875 | 2430 | 24-36 | 24-42 | 1750 |
| 800 | 1450 | 1015 | 1025 | 1085 | 950 | 950 | 990 | 2433 | 24-39 | 24-48 | 1900 |

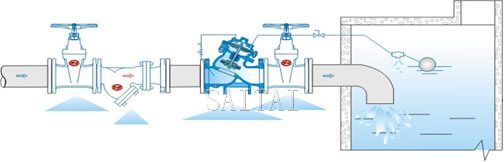

Typical Installation
