DIN Flanged Sleeved Plug Valves

Summary

Flanged Sleeved Plug Valves according to DIN is applicable to the cutting and connection of pipelines medium that aroused in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc. It is under nominal pressure of PN1.6~PN16MPa, and works at the temperature of -29~180°C.
a. The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
b. Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal edge for protection and fixing of the sleeve.
c. There is no cavity in the valve for accumulation of medium.
d. Metal edge provides the function of self-cleaning when the plug is rotated, and it's applicable to the operation condition that is glutinous sand apt to smudge.
e. Its double-direction flow makes installation and use more convenient.
f. The materials of the parts and sizes of flanges can be configured reasonably according the actual operation conditions the customer required, so as to meet the various needs of engineering.

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park

Specifications

Structural formation BC
Diving manner Wrench wheel, worm&worm gear, pneumatic, electric-actuated
Design standard API 599, API 6D
Face to face DIN3002F1
Flange end DIN2543-2549
Test&inspection DIN 3230

Performances

PN(MPa) Shell test (MPa) Sealing test (MPa) Suitable temperature Suitable medium
1.6 2.4 1.76 =180°C Water oil&gas
2.5 3.75 2.75
4.0 6.0 4.4
6.4 9.6 7.04
10.0 15.0 11.0
16.0 24.0 17.6

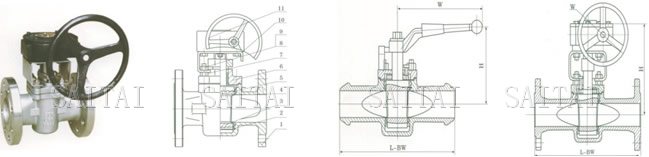

DIN Flanged Sleeved Plug Valves
DIN Flanged Sleeved Plug Valves

Materials

NO Part name Material
1 Body GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301
2 Sleeve PTFE
3 Plug 1.7363 1.4308 1.4408 1.4306 1.4301
4 Gasket PTFE
5 Adjusting gasket ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304 F316F321,F304L,316L
6 Cover GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301
7 Adjusting Bolt ASTM A193-B7 A320-B8 193-B8M
8 Nut ASTM A194-2H, A194-8, A194-8M
9 Bolt ASTM A193-B7,A193-B8,A193-B8M
10 Yoke WCB
11 Worm Q235 WCB

Dimensions and Weights

Pressure PN16
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF.BW 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980
H 150 155 160 180 190 200 220 230 380 460 520 580 620 680 740
W 300 300 300 350 400 500 500 550 300 300 320 320 350 380 380
Weight(kg) 9 10 11 13 14 19 23 27 43 62 75 155 222 390 580
Pressure PN25
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF.BW 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980
H 150 155 160 180 190 200 220 230 380 460 520 580 620 680 740
W 300 300 300 350 400 500 500 550 300 300 320 320 350 380 380
Weight(kg) 10 11 13 15 17 22 31 55 77 88 190 190 235 399 630
Pressure PN40
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF.BW 130 150 160 180 200 230 290 310 350 400 480 600 730 850
H 190 195 225 260 280 310 340 395 435 470 535 590 630 680 720
W 120 140 140 180 200 220 260 280 300 340 400 450 450 500 500
Weight(kg) 12 14 18 21 24 29 33 39 75 103 146 251 337 521 720
Pressure PN60
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF.BW 130 150 160 180 200 230 290 310 350 400 480 600 730 850
H 190 195 225 260 280 310 340 395 435 470 535 590 630 680 720
W 120 140 140 180 200 220 260 280 300 340 400 450 450 500 500
Weight(kg) 14 17 22 25 29 34 43 50 94 123 170 291 430 625 875

Note: 4" or above with gear
