QY-3 Ball Valve for Gas Source Pipeline

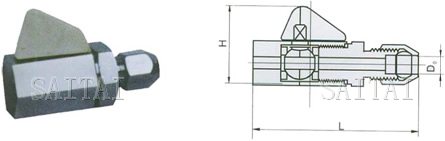

QY-3 ball valve for gas source pipeline diagram:

QY-2 Socket type ball valve diagram
QY-2 Socket type ball valve diagram

QY-3 ball valve for gas source pipeline performance criterion:

QY-3 ball valve for gas source pipeline is Applicable to:
Medium:Air,
Make material:304SS, 316SS,20#,
Connection: Clamp connection

QY-3 ball valve for gas source pipeline connecting dimensions:

SPECIFICATION Do L H NOMINAL PRESSURE
DN3 Φ6 80 ~40 =1MPa
DN6 Φ8 82 ~40 =1MPa
DN10 Φ10 84 ~40 =1MPa
