One Piece (1-PC), Instrumentation Ball Valves

Pressure: PN 6.4 MPa
Material: 304SS 316SS 20#,
One Piece (1-PC), Ball
Tube fitting and Female NPT End Straight and Angle Pattern

PN 6.4 MPa- Tube Fitting Nuts-Straight Pattern-Dimensions:

PN 6.4 MPa- Tube Fitting Nuts-Straight Pattern-Dimensions
PN 6.4 MPa- Tube Fitting Nuts-Straight Pattern-Dimensions
SPECIFICATION Do L L1 H
DN3 Φ6 60 38 32
DN6 Φ8 65 38 42
DN10 Φ10 75 38 50

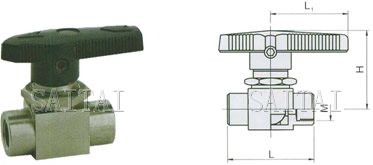

PN 6.4 MPa-Female NPT Ends-Straight Pattern-Dimensions:

PN 6.4 MPa-Female NPT Ends-Straight Pattern-Dimensions
PN 6.4 MPa-Female NPT Ends-Straight Pattern-Dimensions
SPECIFICATION L L1 M H
DN3 40 30 M12×1.25 32
DN3 40 30 ZG1/8 32
DN6 50 38 ZG1/4 42

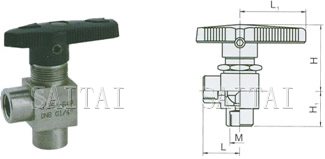

PN 6.4 MPa- Female NPT Ends-Angle Pattern-Dimensions:

PN 6.4 MPa- Female NPT Ends-Angle Pattern-Dimensions
PN 6.4 MPa- Female NPT Ends-Angle Pattern-Dimensions
SPECIFICATION L L1 M H H1
DN3 20 30 M12×1.25 32 20
DN3 20 30 ZG1/8 32 20
DN6 25 38 ZG1/4 42 25
