Circuit balancing valve

Summary

Circuit balancing valve is a valve having special functions, has good flow characteristics and can distribute flow and realize the flow ration reasonably. And it can settle effectively the problem of uneven cold and hot room temperatures existing in the heat supply (air conditioning) system. Because this valve is set with an indication of opening locker and a small valve of the pressure measurement for flow determination, so the total water quaintly in the system can be controlled within a reasonable range only by way of mounting a balance valve of a proper specs on each branch and the user's access and taking a primary debugging on it with a special intelligent meter, then locking it, thus setting the unreasonable condition of "heavy flow, small temperature difference&. It is the ideal product for use in the heat supply system.

Circuit Balancing Valves
Circuit Balancing Valves

Technical parameters

PN(MPa) Test pressure(MPa) Working pressure(MPa) Working temperature Applicable medium
Shell strength Sealing performance P20 P12
1.6 2.4 1.76 1.5 1.6 =200°C Water,steam

Materials

Name of parts Body Hand wheel Stem Sealing Yoke nut Washer Packing
Material C.l ,Bronze Bowl-shaped steel, Stainless steel C.l ,Bowl-shaped steel, Stainless steel bronze Rubber asbestos plank Inflation graphite

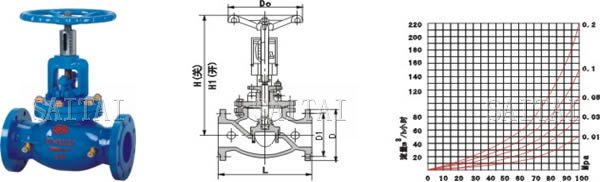

Dimensions (mm)

Type PN (MPa) DN (mm)1 Dimensions(mm)
L D D1 n-fd H H1 D0
KPF-16
Stop valves type
1.6 15 130 95 65 4-14 150 160 80
20 150 105 75 4-14 160 170 80
25 160 115 85 4-14 182 197 80
32 180 135 100 4-18 192 207 90
40 200 145 110 4-18 250 270 100
50 230 160 125 4-18 320 340 120
65 290 180 145 4-18 380 410 200
80 310 195 160 8-18 413 448 200
100 350 215 180 8-18 466 506 240
125 400 245 210 8-18 540 595 240
150 480 280 240 8-23 623 688 360

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park

Typical installation

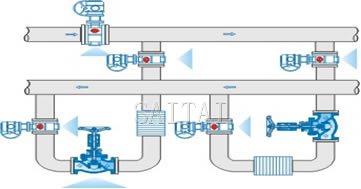

Typical installation of Circuit Balancing Valves
